Cultivation
TopTilthCultivator
Fast, efficient seedbed preparation in a single pass — consistent fine tilth across a wide range of soil types and working widths.
Cultivation
TopTilthCultivator
Fast, efficient seedbed preparation in a single pass — consistent fine tilth across a wide range of soil types and working widths.
Technical specification
Specification

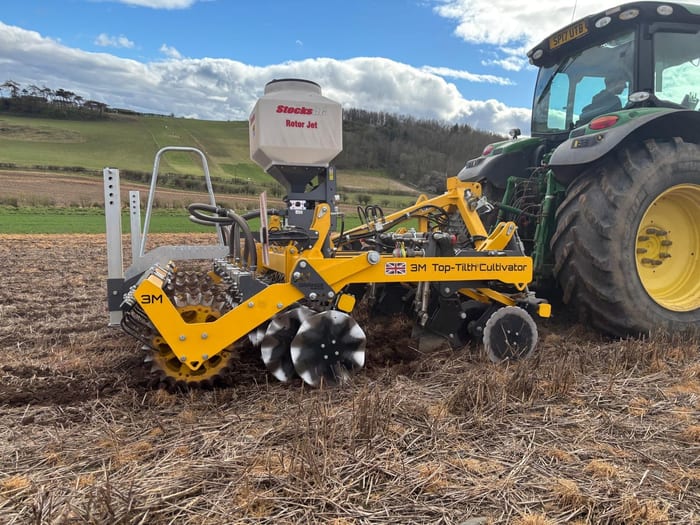

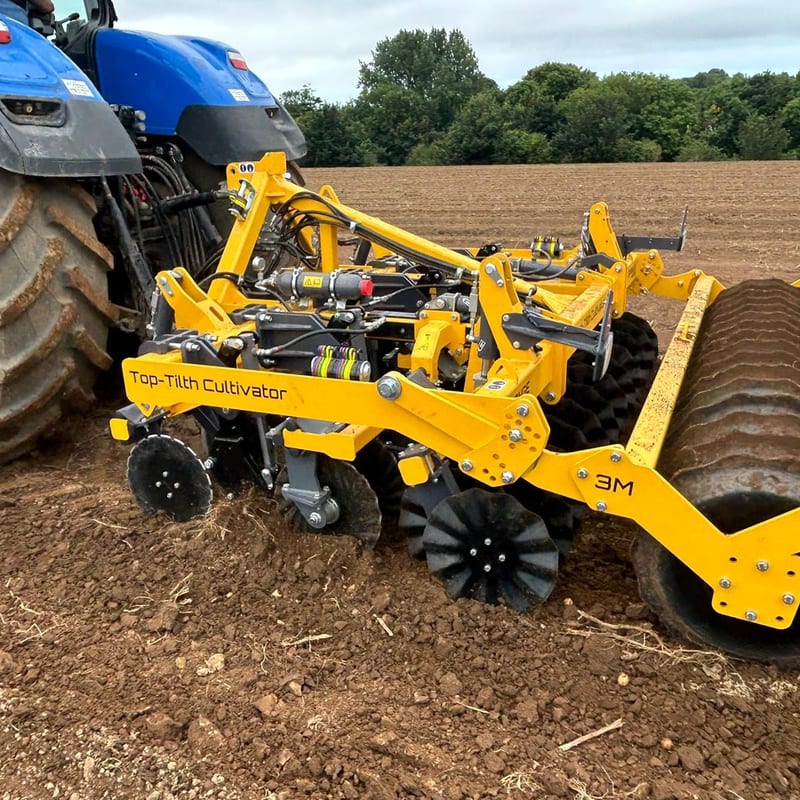

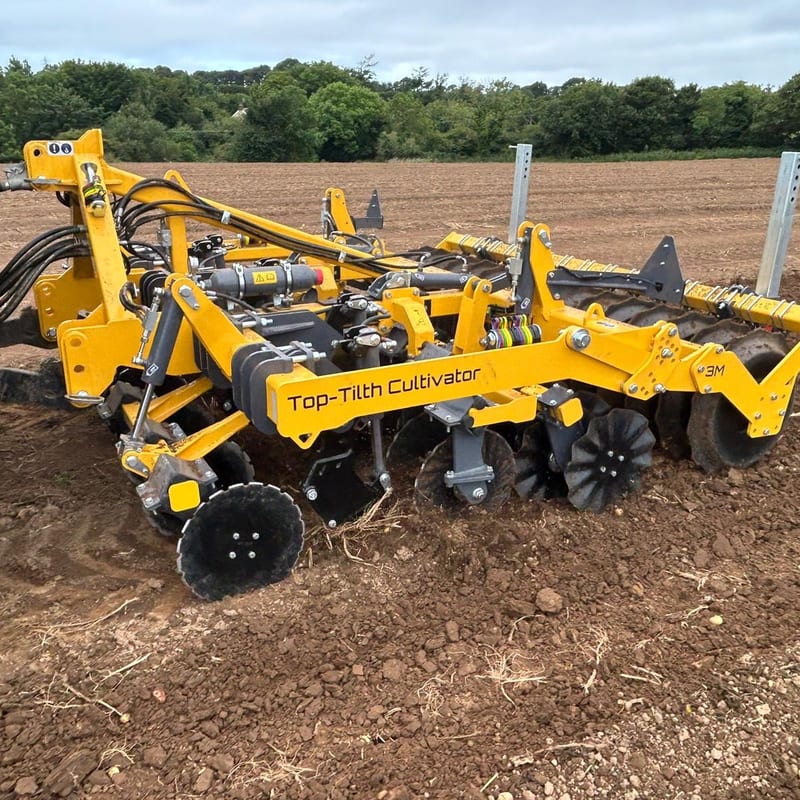

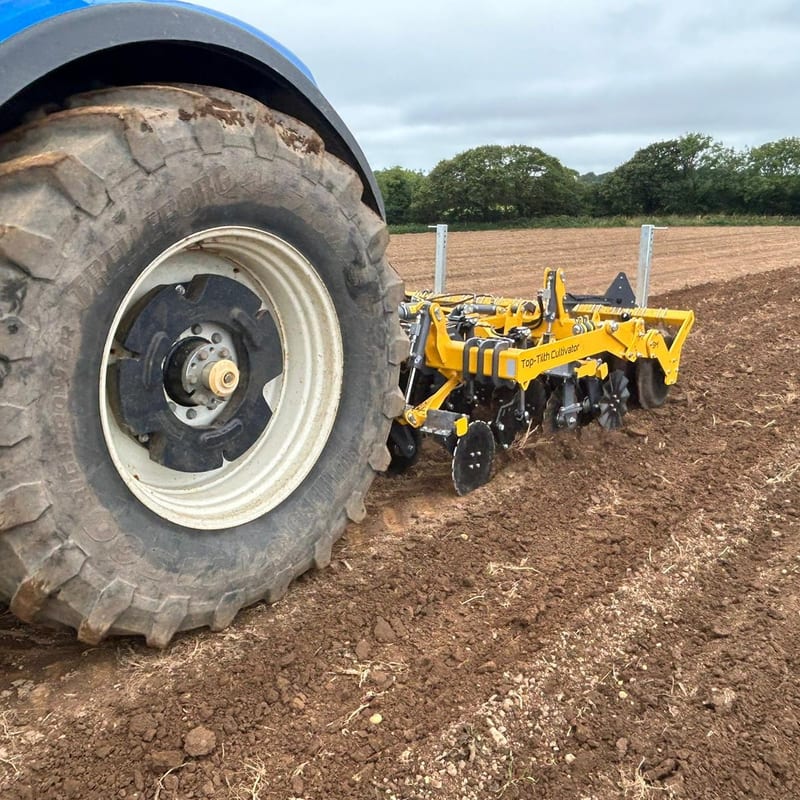

In the field
See the Top-Tilth Cultivator in Action
See it in action

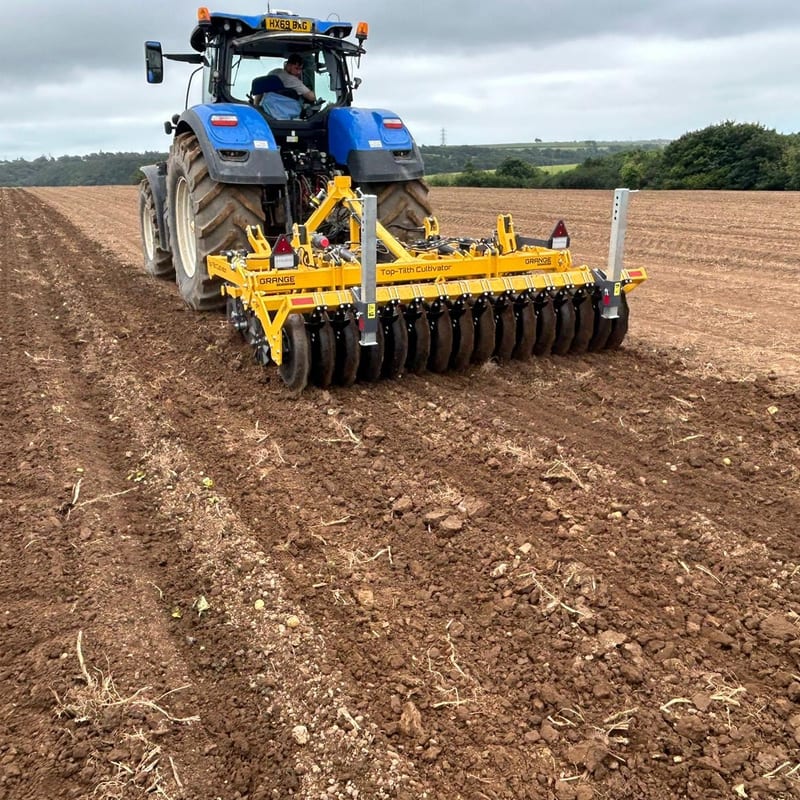

The Top Tilth in the field
Performance
Designed for British Conditions
Built to handle the full range of British soil types — from heavy clays to light sandy soils — the Top Tilth Cultivator delivers a reliable finish whatever the conditions.
Simple to set up and easy to adjust on the headland, it's a machine that works hard and keeps working season after season.
Get started
Interested in the Top Tilth Cultivator?
Key features
Top-Tilth Cultivator — What Sets It Apart
Front discs

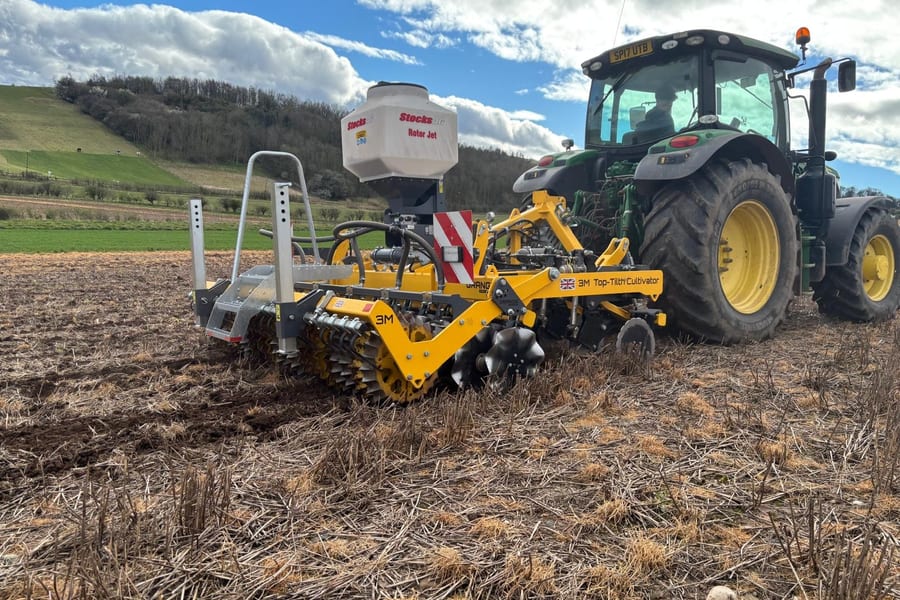

Hydraulic Front Cutting Discs
450mm hydraulic front cutting discs for effective trash management. Strong and robust main frame with CAT3 linkage points for reliable attachment and performance.

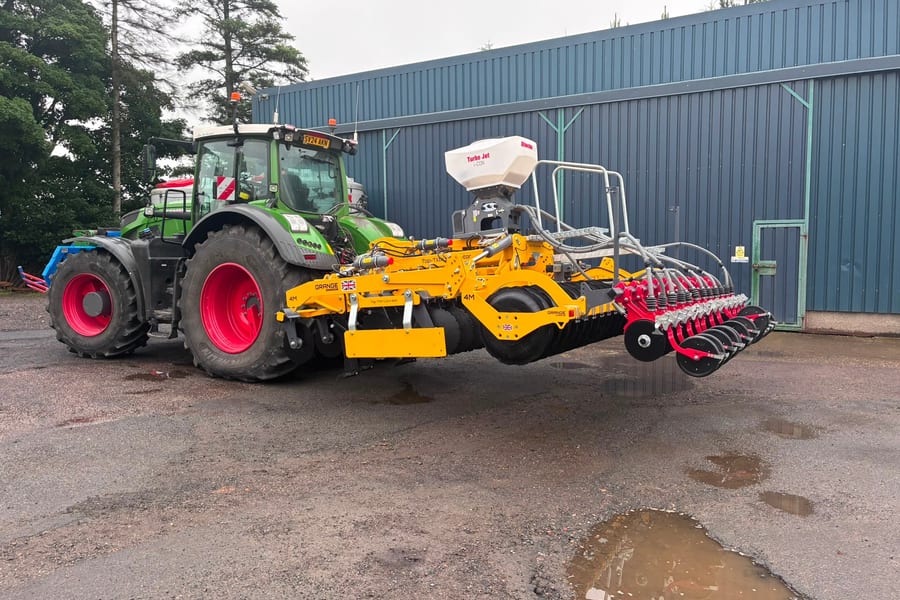

Loosening legs
Staggered Low Disturbance Tines
Shear bolt or hydraulic reset low disturbance loosening legs with 300mm+ working depth. Interchangeable point width offering for minimum to maximum soil lift.
Rear discs

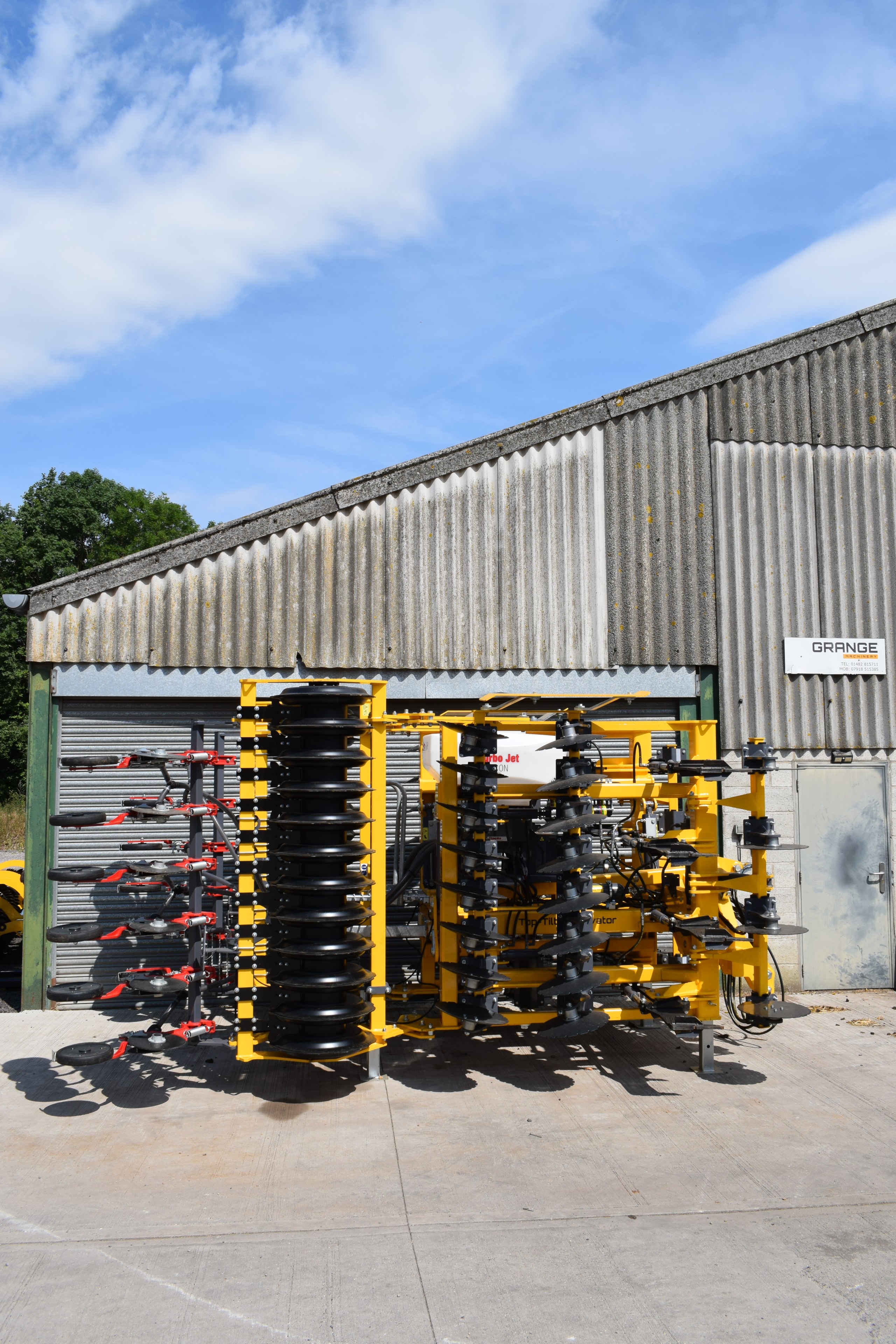

Hydraulic Rear Wavy Discs
Rear-mounted offset 450mm wavy discs, hydraulically adjustable up and down to determine the finish of the soil condition in the row — enabling a good seedbed for planting.
3-in-1 system

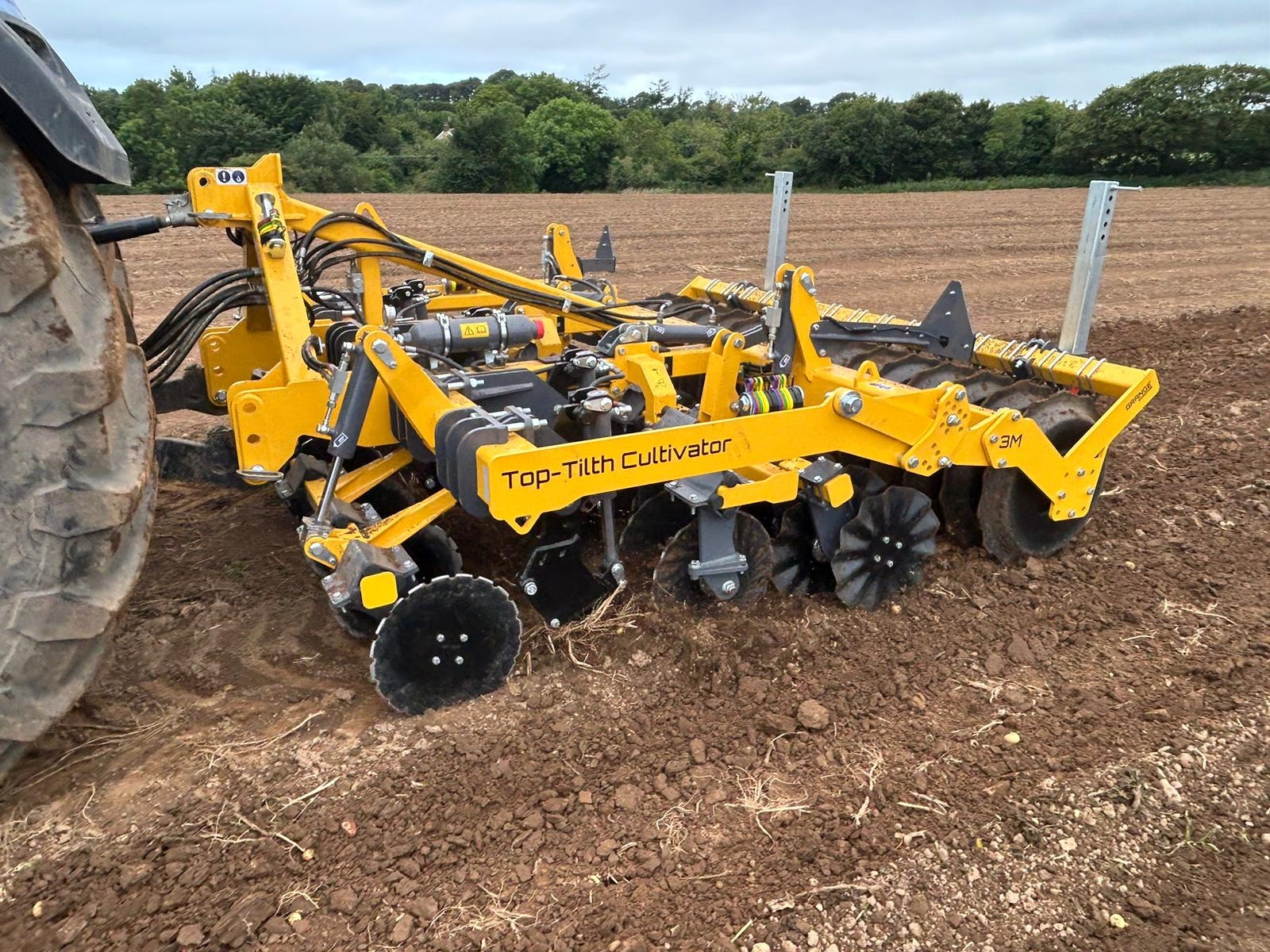

Versatile 3-in-1 Cultivation
The three elements fitted to the frame allow the TTC to become a full system cultivator, a shallow disc cultivator with legs out of work, or a low disturbance loosener with discs raised.
Parallelogram feature

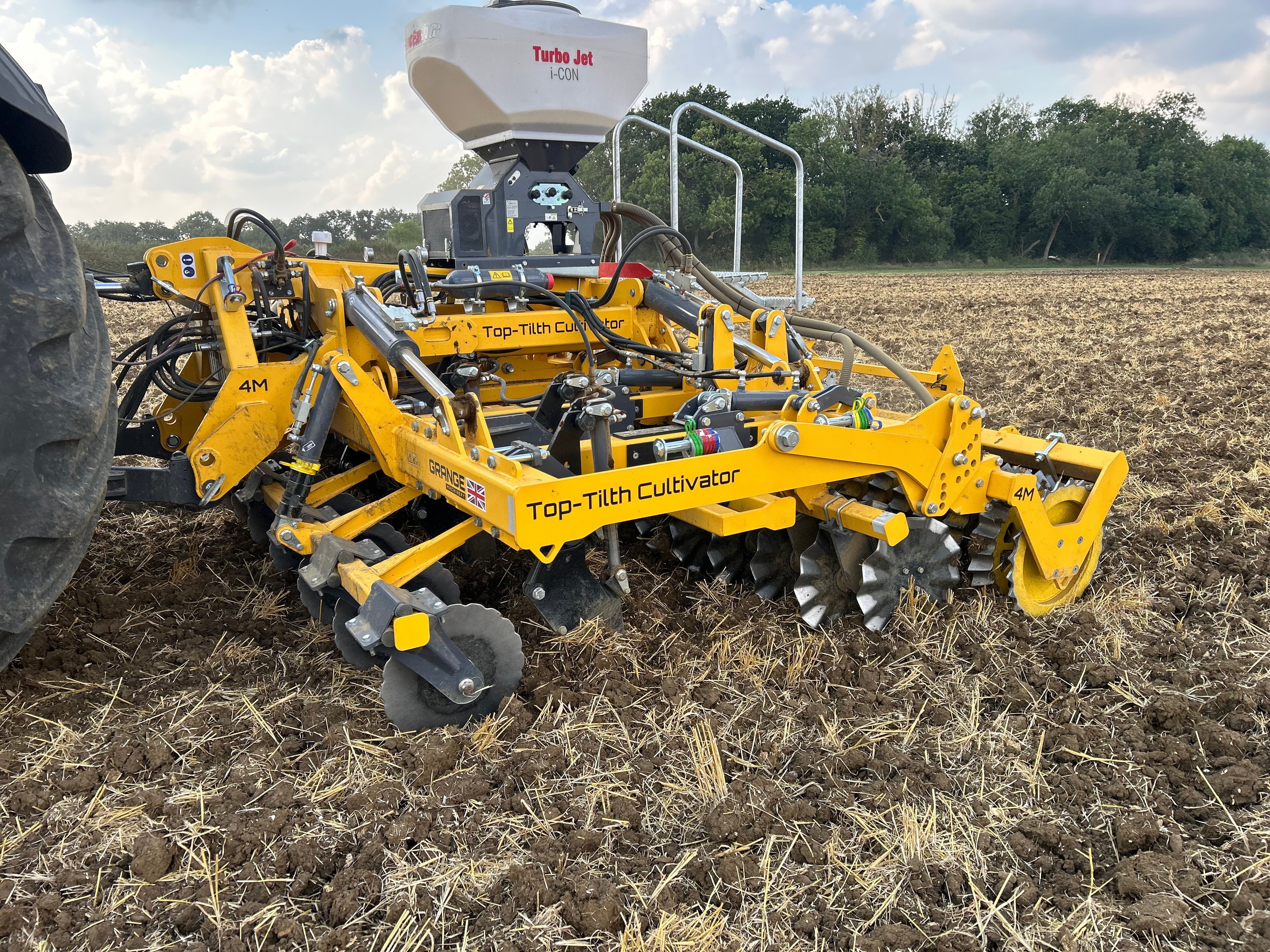

Hydraulically Adjustable Disc Beam
A unique parallelogram feature allows the full-width disc beam to be hydraulically adjusted for accurate depth management, delivering optimum performance across varying conditions and soil types.

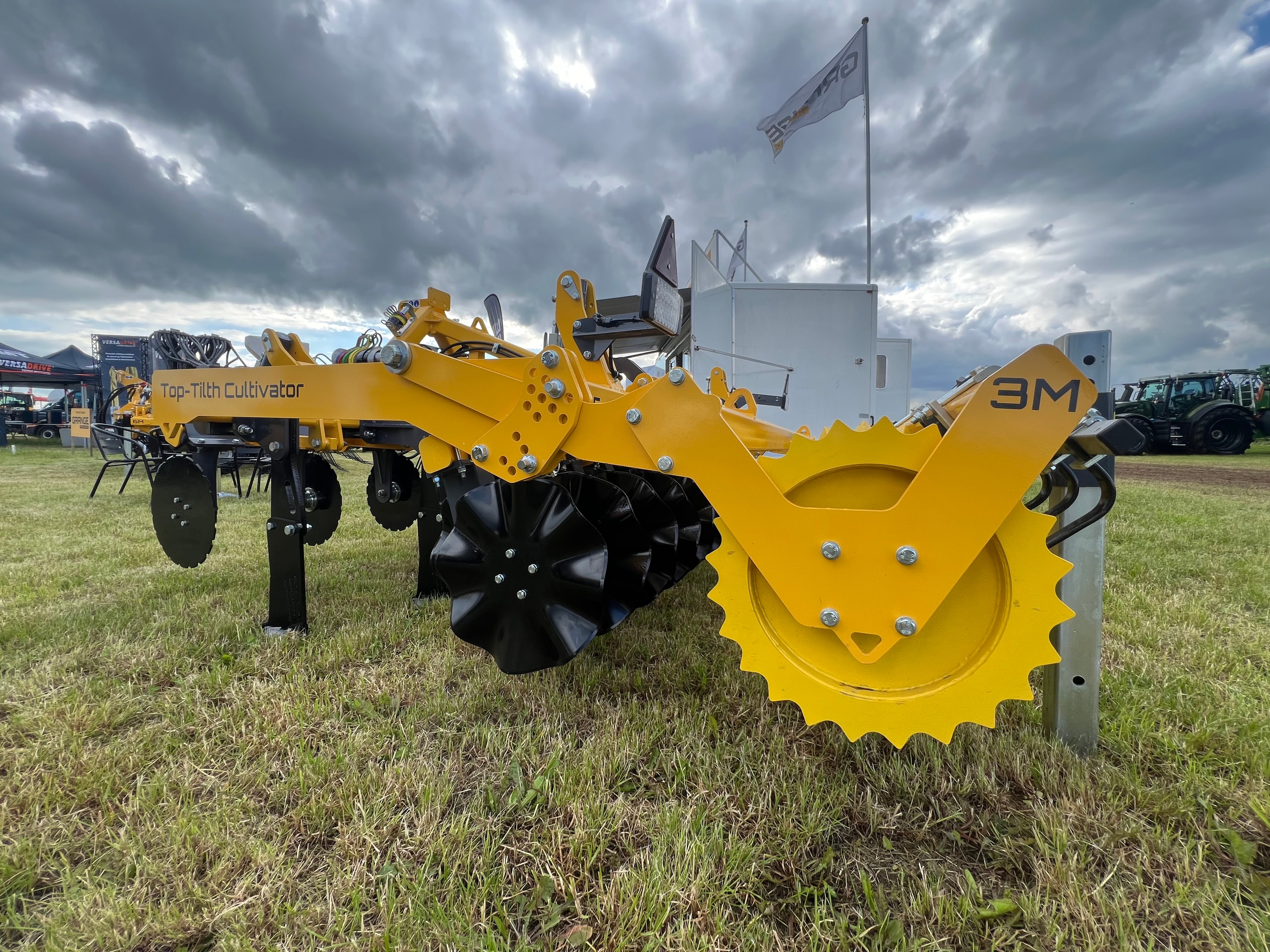

Packer roller
Full-Width Guttler Packer Roller
A full-width Guttler rear packer roller provides final cultivation and consolidation, producing a seedbed ready for drilling in a single pass.

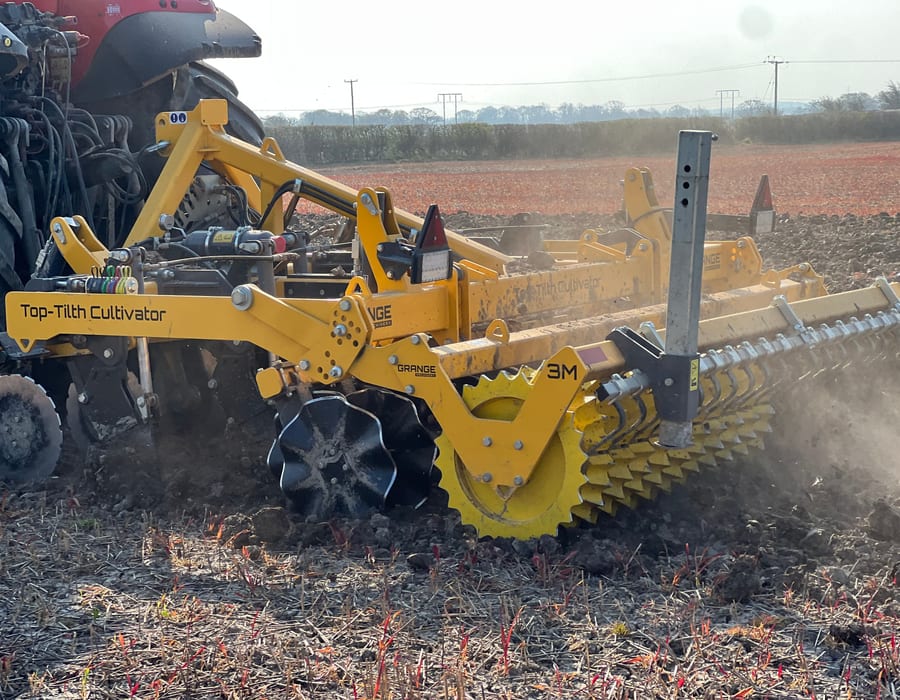

In the field
Proven in British Conditions
The Top Tilth Cultivator has been developed and tested in the full range of global soil types — from heavy clays to light sandy soils. It handles surface trash, clods, and variable conditions without compromising on finish quality.
Simple to set up and easy to adjust on the headland, it's a machine that works hard and keeps working — season after season.
Optional Upgrade
Seeder options.
Add a seeding capability to your Top Tilth Cultivator and establish crops in a single pass. Combine the fine seedbed preparation of the Top Tilth with accurate seed placement for reliable establishment.

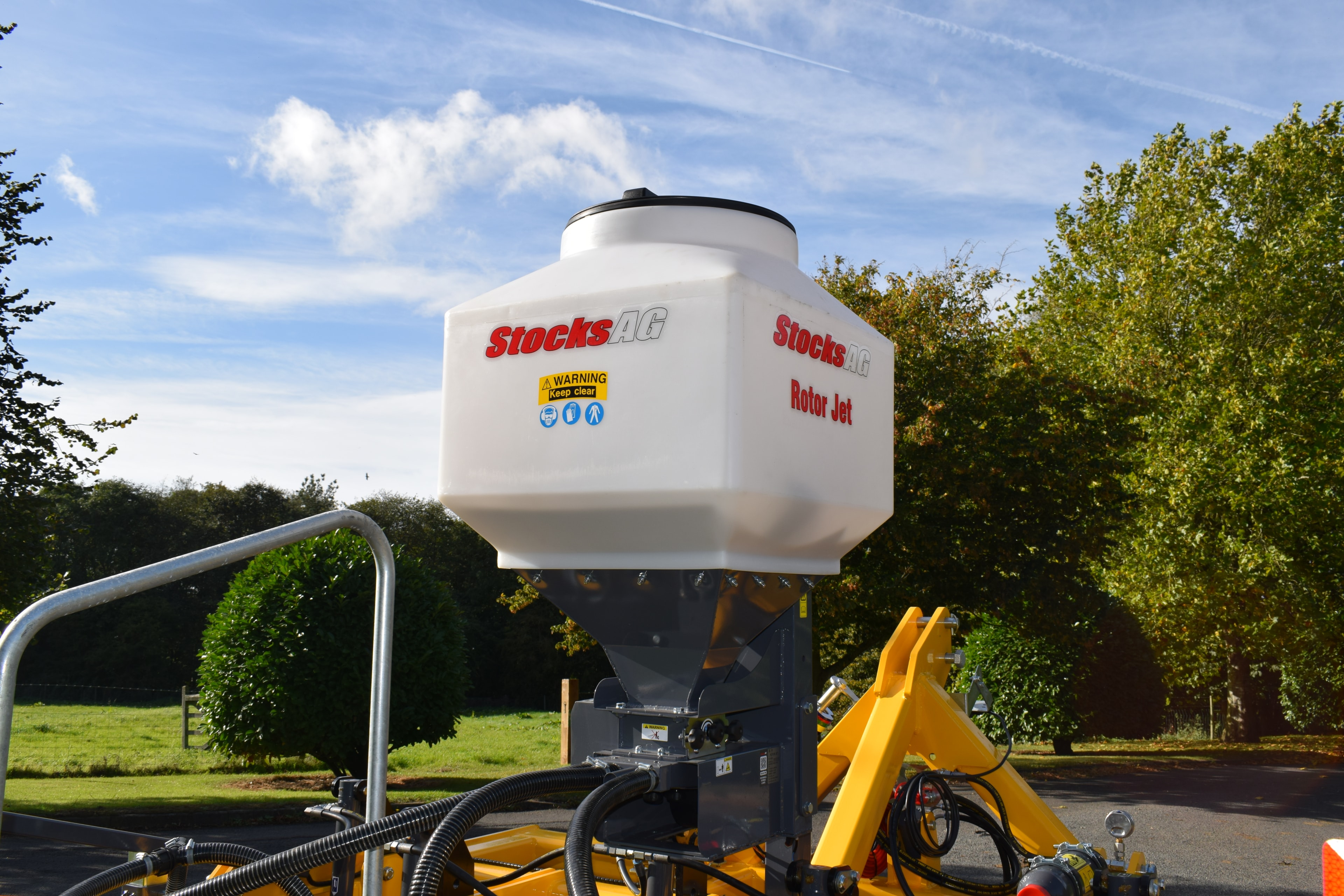

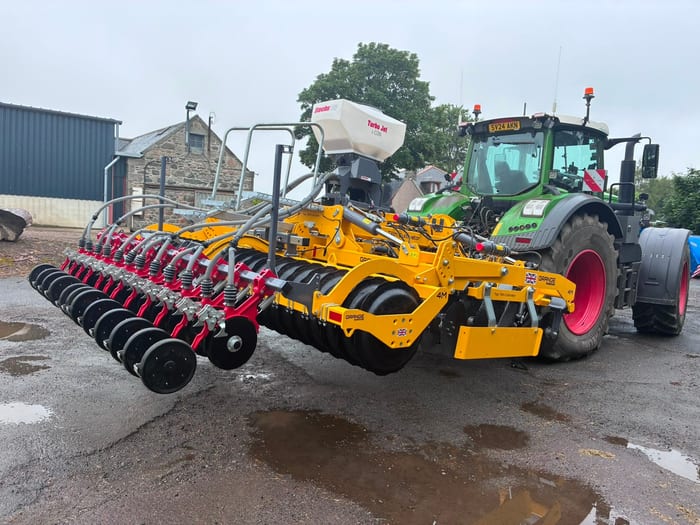

SeederKit
The complete seeder assembly including the access platform and mounting bracket. Integrates directly onto the Top Tilth Cultivator frame, placing seed accurately into the prepared seedbed in a single pass.

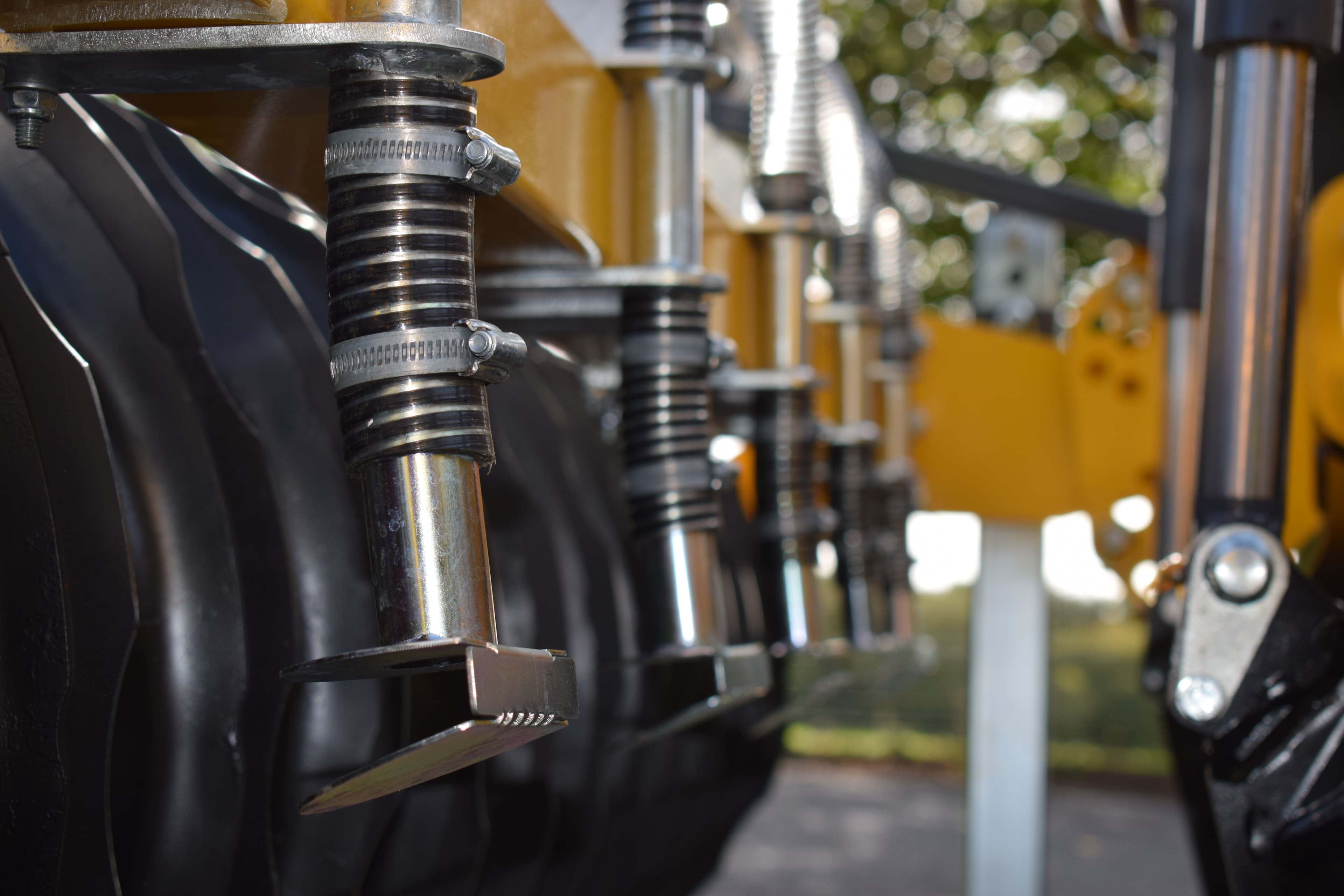

BroadcastingKit
Pipe and splash plate setup for broadcast application across the full working width. Ideal for cover crops, grass seeds, and other small-seeded species where precise placement is less critical.

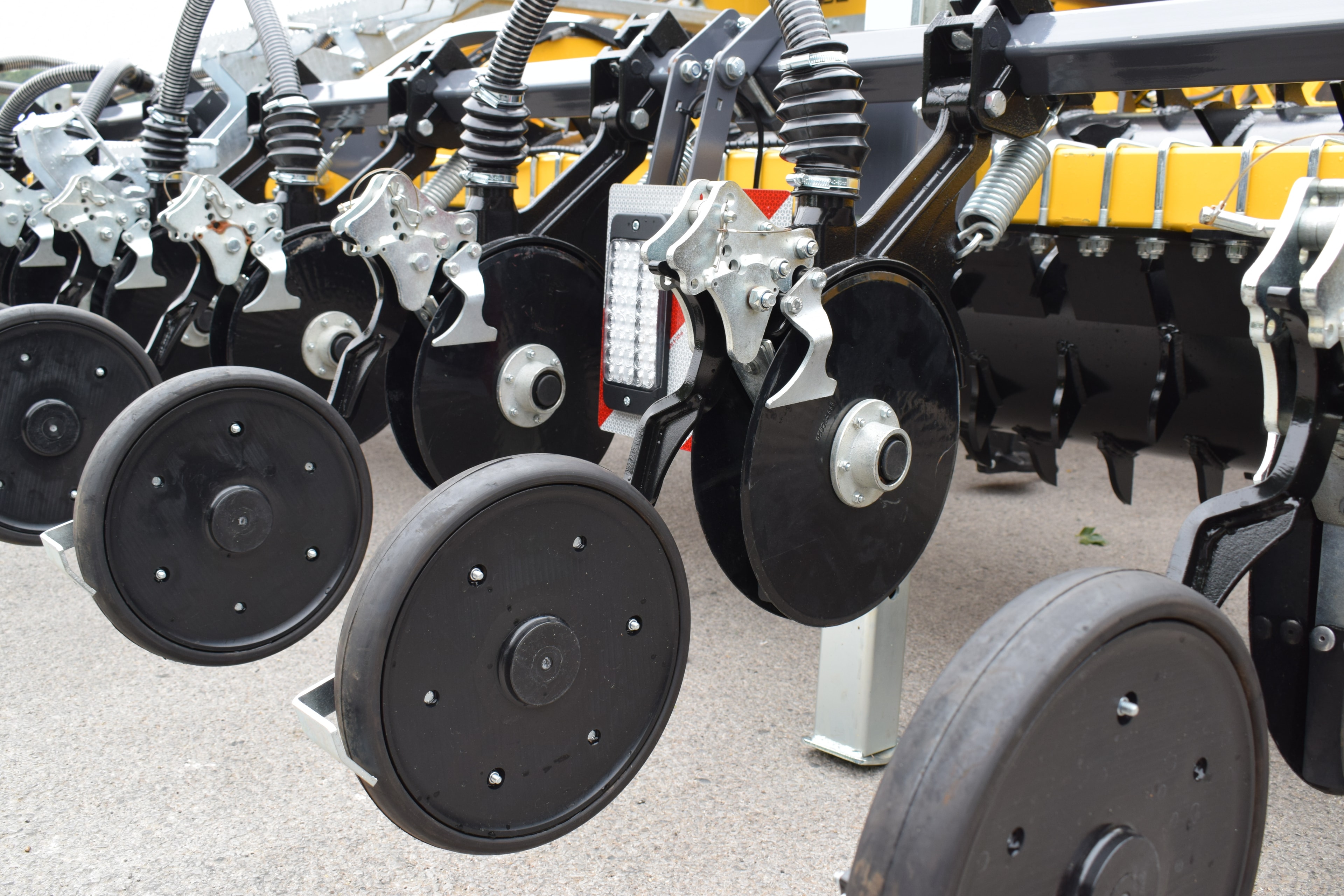

CoulterKit
Rear-mounted bar complete with all coulters for precise seed placement into the prepared seedbed. Delivers consistent depth and spacing for demanding establishment requirements.
In the field
OSR establishment results - single-pass cultivation and seeding.
Not sure which seeder option suits your operation?
Our team can advise on the best configuration for your seed type and working conditions.
Available Configurations
Three roller types.
One system.
Every Grange packer roller is interchangeable on the same toolbar frame. Choose the profile that suits your soil type, crop, and conditions — or run all three across your rotation.
Tooth Packer
Roller
Aggressive consolidation and excellent clod-breaking action create a fine, crumbly soil structure, ideal for heavy soils and challenging seedbed conditions. The self-propelling action of the teeth helps reduce the power required to pull the machine, improving fuel efficiency.
Shoulder Press
Roller
Delivers firm, even consolidation across the full working width, breaking down clods and encouraging capillary action to improve moisture movement through the soil. Creates a consistent, level seedbed for precision drilling and reliable crop establishment.
Güttler
Roller
Star-shaped profile for superior soil-to-seed contact and moisture retention. The common choice for OSR and small-seed establishment.
All roller types are removable and interchangeable — attach or detach in minutes without specialist tools.
