Low Disturbance Toolbar
6m/8mLowDisturbanceToolbar
The ultimate in-field companion for flexible, low-disturbance cultivation and drilling
Low Disturbance Toolbar
6m/8mLowDisturbanceToolbar
The ultimate in-field companion for flexible, low-disturbance cultivation and drilling
In the field
See the LDT (6m) in Action
About the Machine
Engineered for Modern Farming Systems

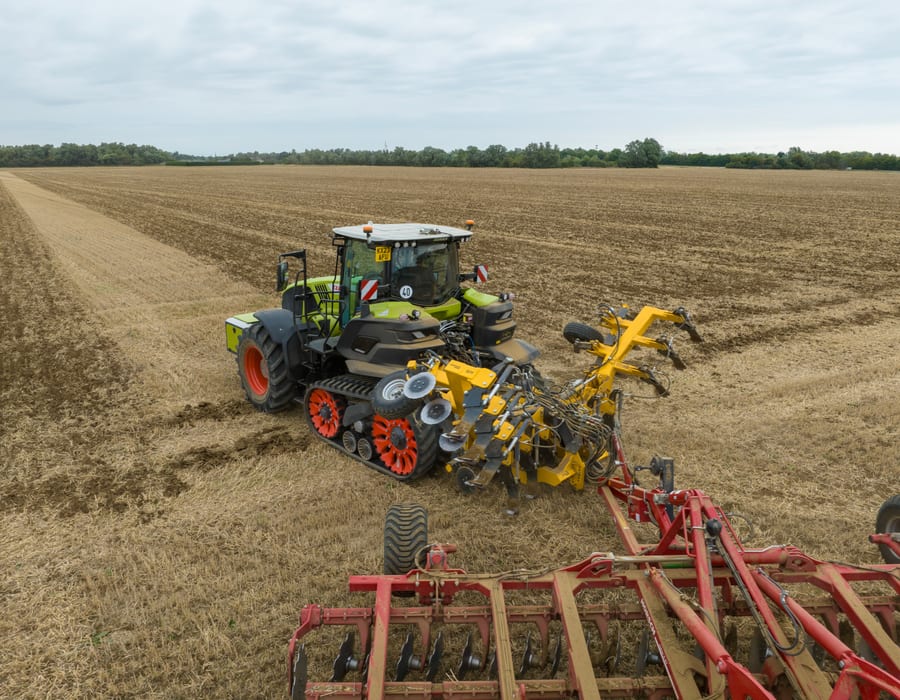

The Grange 6m Low Disturbance Toolbar (LDT) is engineered for modern farming systems that demand high flexibility and minimal soil disruption. Built for use either independently or in combination with trailed implements, this toolbar enhances establishment performance through smart design and robust construction.
Get a Quote
Key features
6m / 8m LDT — What Sets It Apart

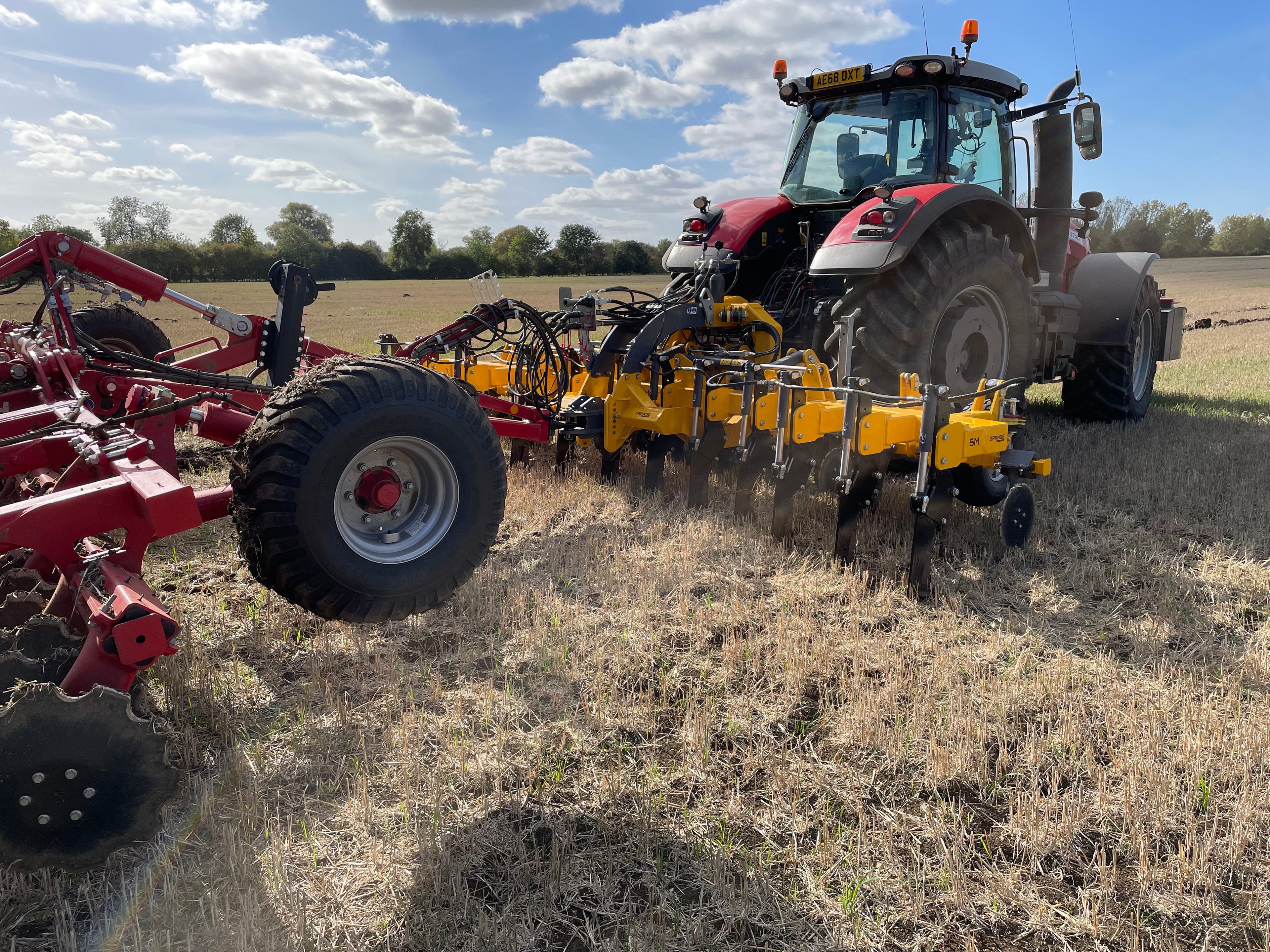

Flexible Working Width
Supplied with a standard 6m working width, with the flexibility to configure the machine to 5m when required — adapting to your field and farming system.

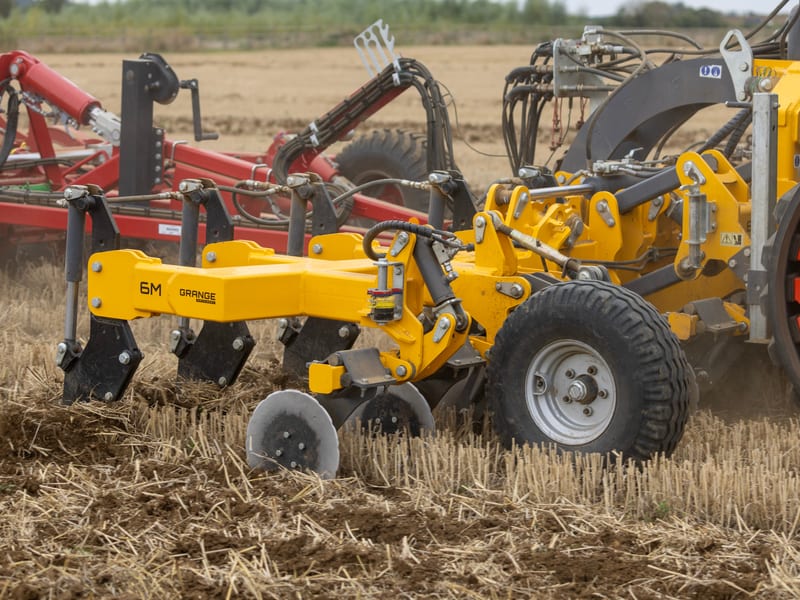

Low Disturbance Leg System

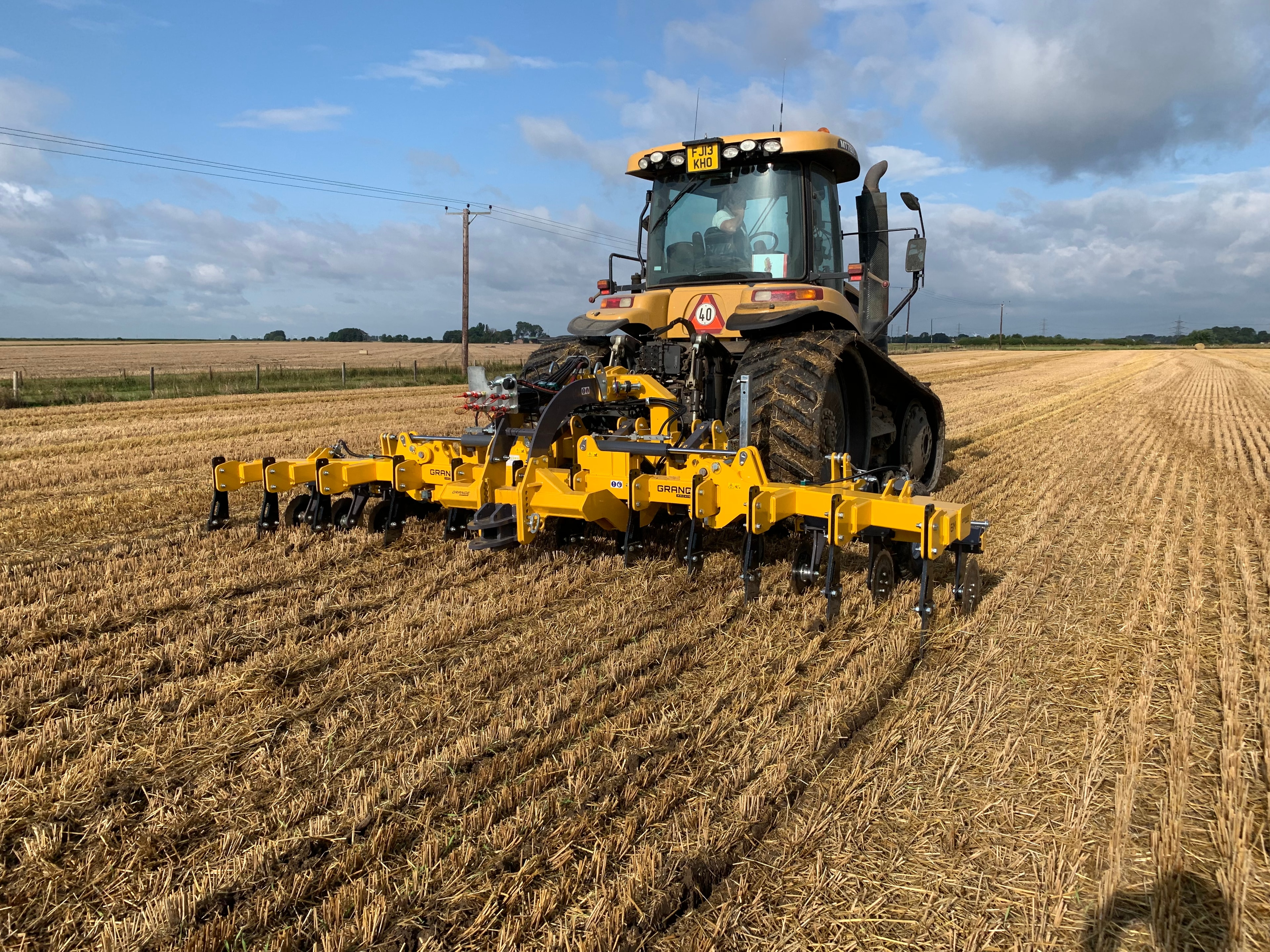

Features 12 low disturbance legs spaced at 500mm centres, capable of working to depths of 300mm. Choose between shear bolt or hydraulic auto-reset leg protection to suit your conditions.
Hydraulic Trash Management
Twelve front-mounted hydraulic cutting discs reduce surface disturbance, cut through crop residue and improve trash flow — keeping the machine working cleanly in challenging conditions.

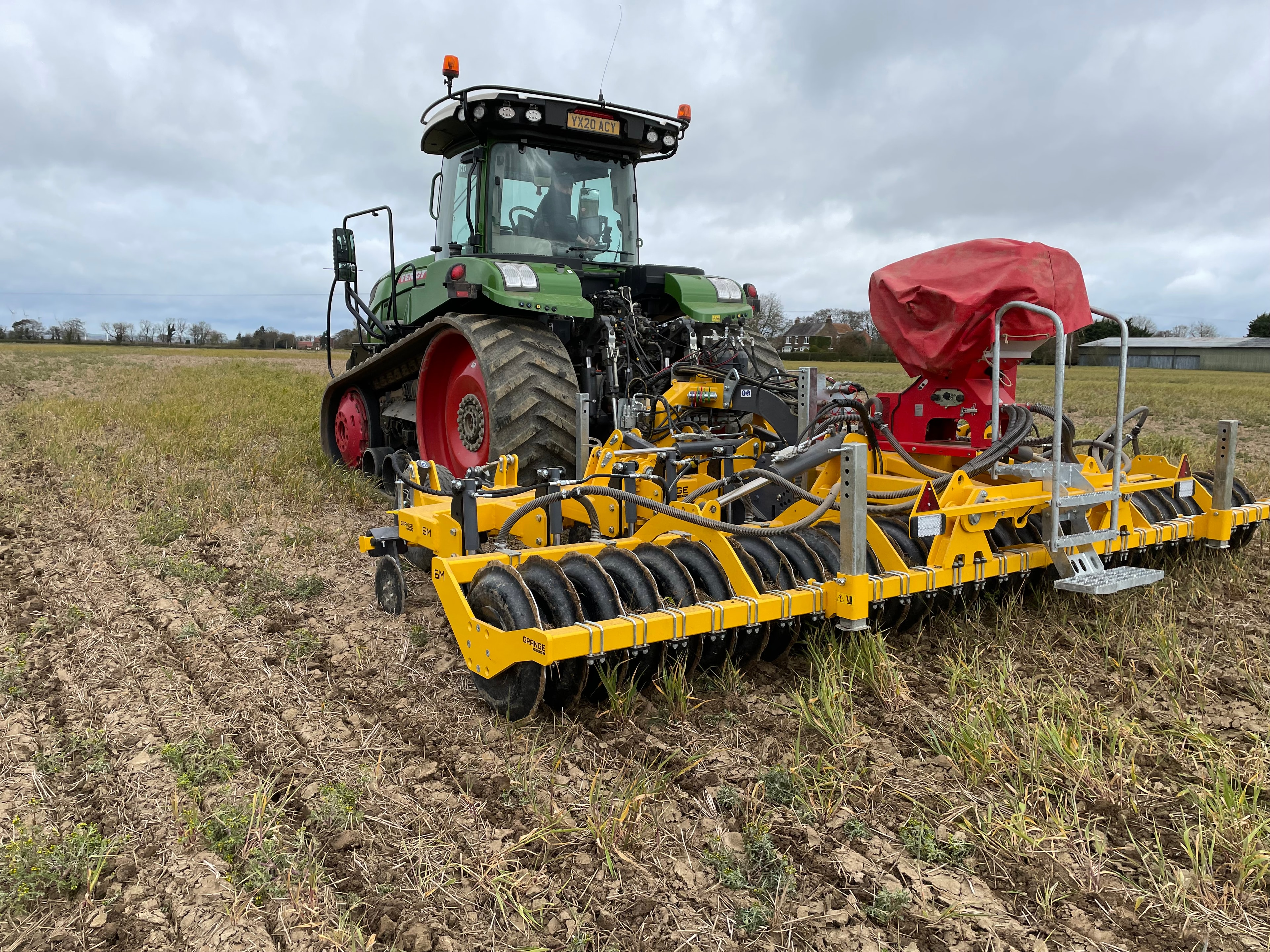

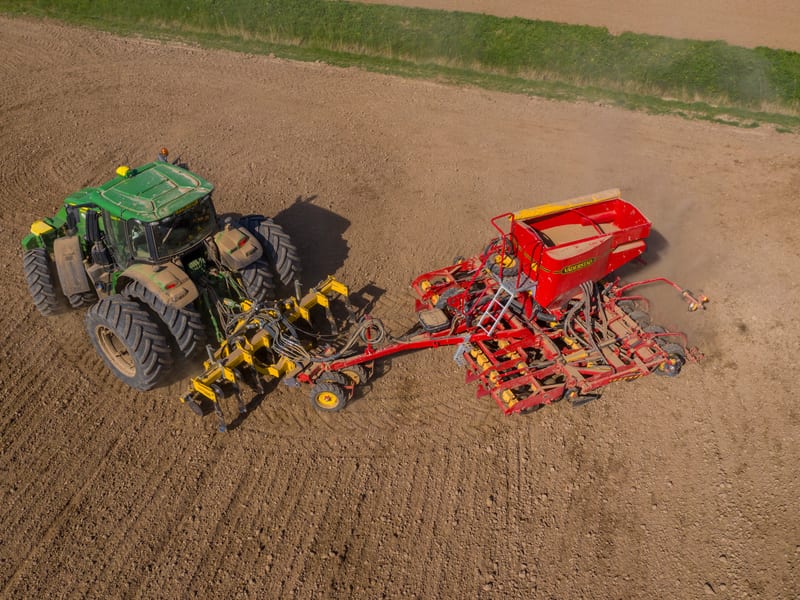

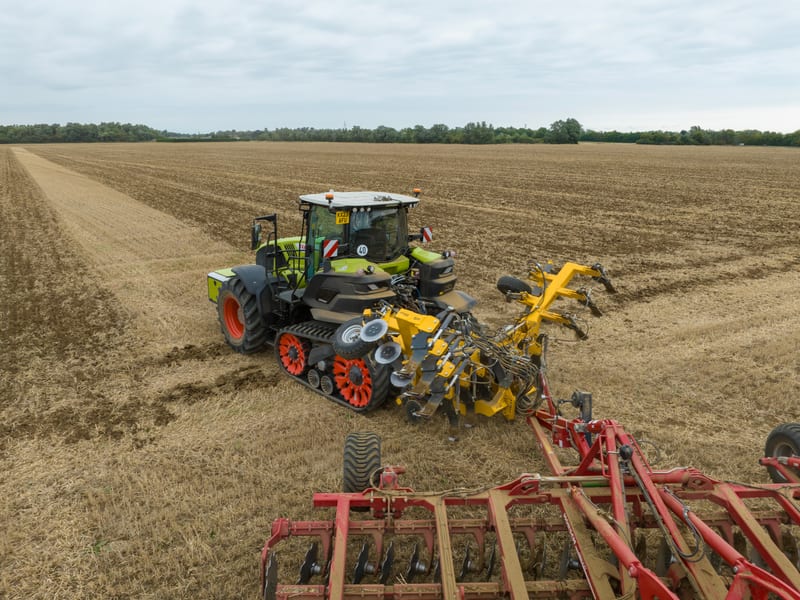

Automatic Tight Turn System
The automatic tight-turn system folds the machine to 3m during headland turns using a single double-acting hydraulic service, improving manoeuvrability and reducing headland time.

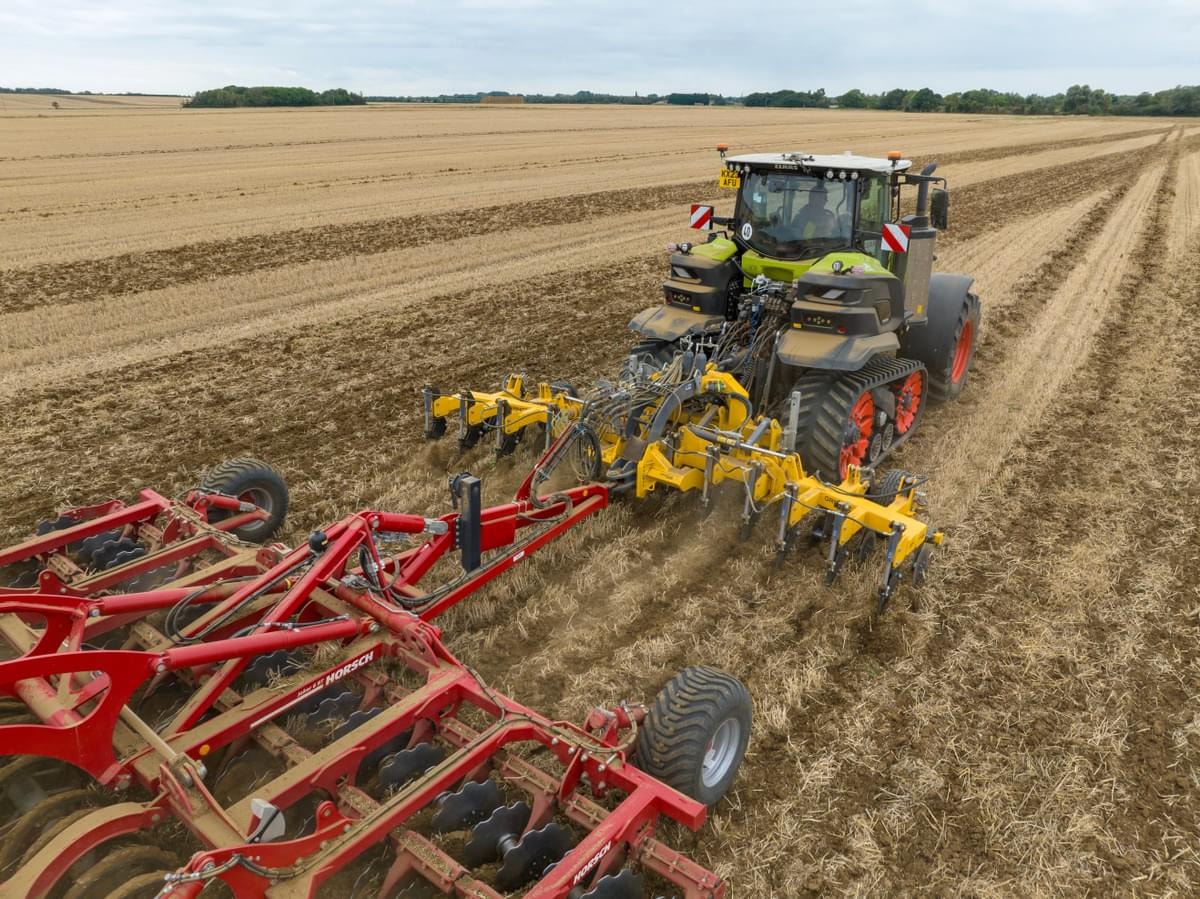

On-the-Move Hydraulic Control
Adjust the legs and cutting discs while moving, without affecting the working height of the attached trailed implement — maximising in-field productivity and operator convenience.

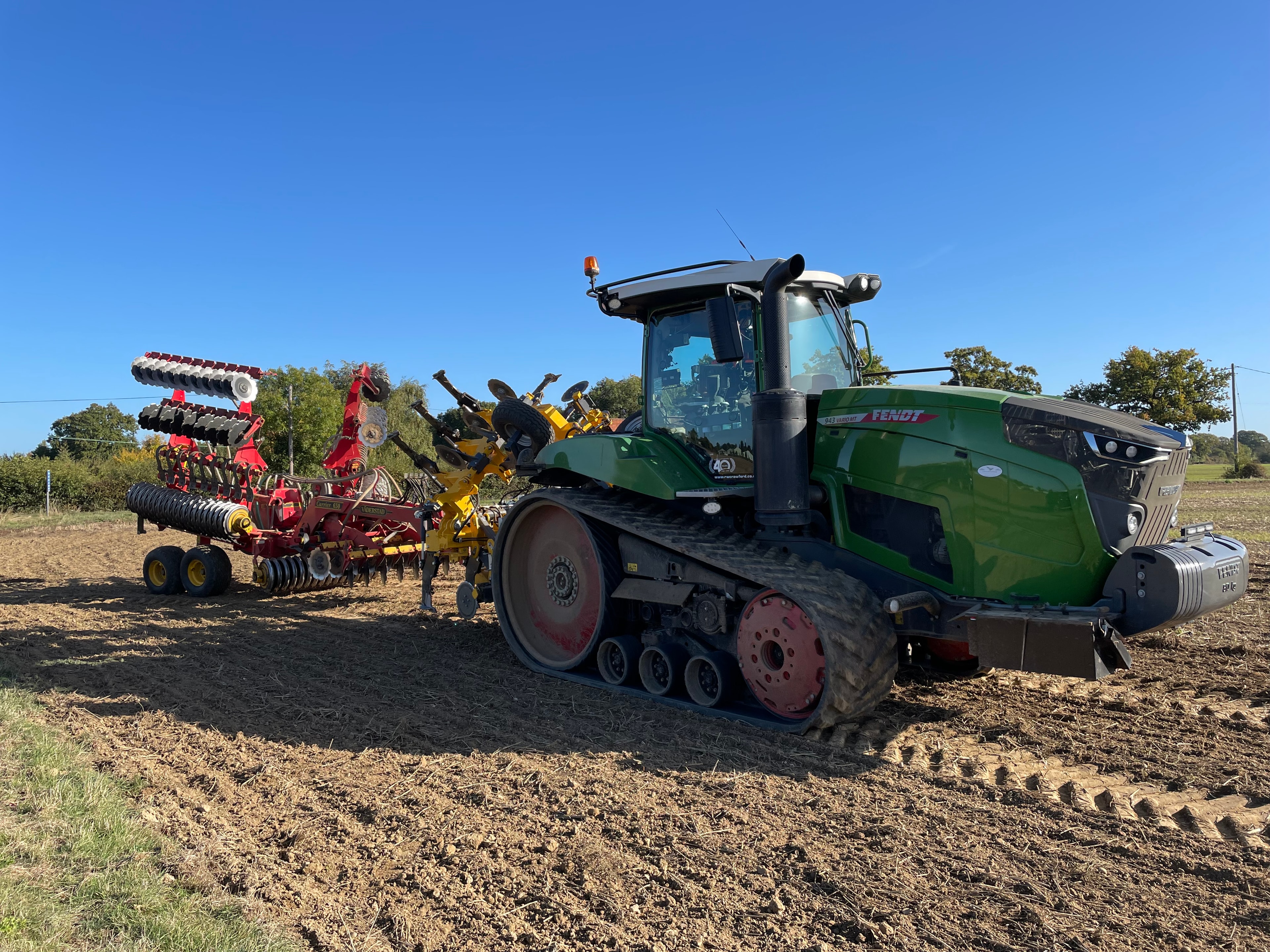

Versatile Mounting and Implement Integration
Compatible with a range of drills, cultivators and presses, with Clevis or Link Arm rear hitch options. Features four double-acting spool valves and a ¾-inch free-flow return for drill compatibility. Integrates with the LDT Packer Roller and seeding systems for a complete strip-till setup.
See It In Action
6m / 8m LDT — Up Close
Designed for modern farming
Standalone or combined — your choice, every pass

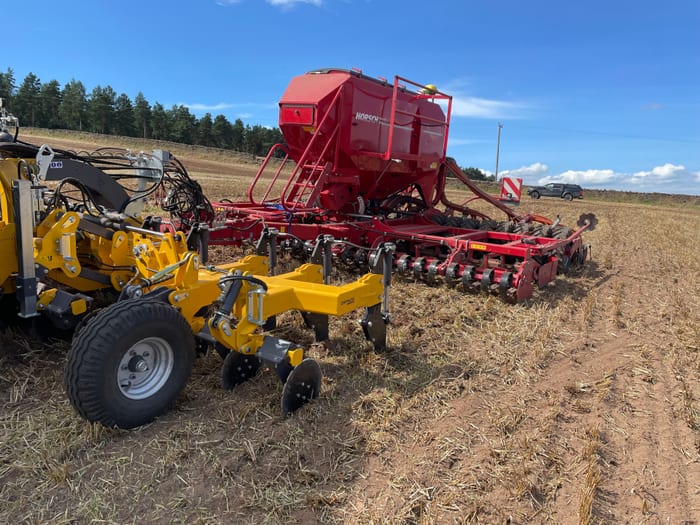

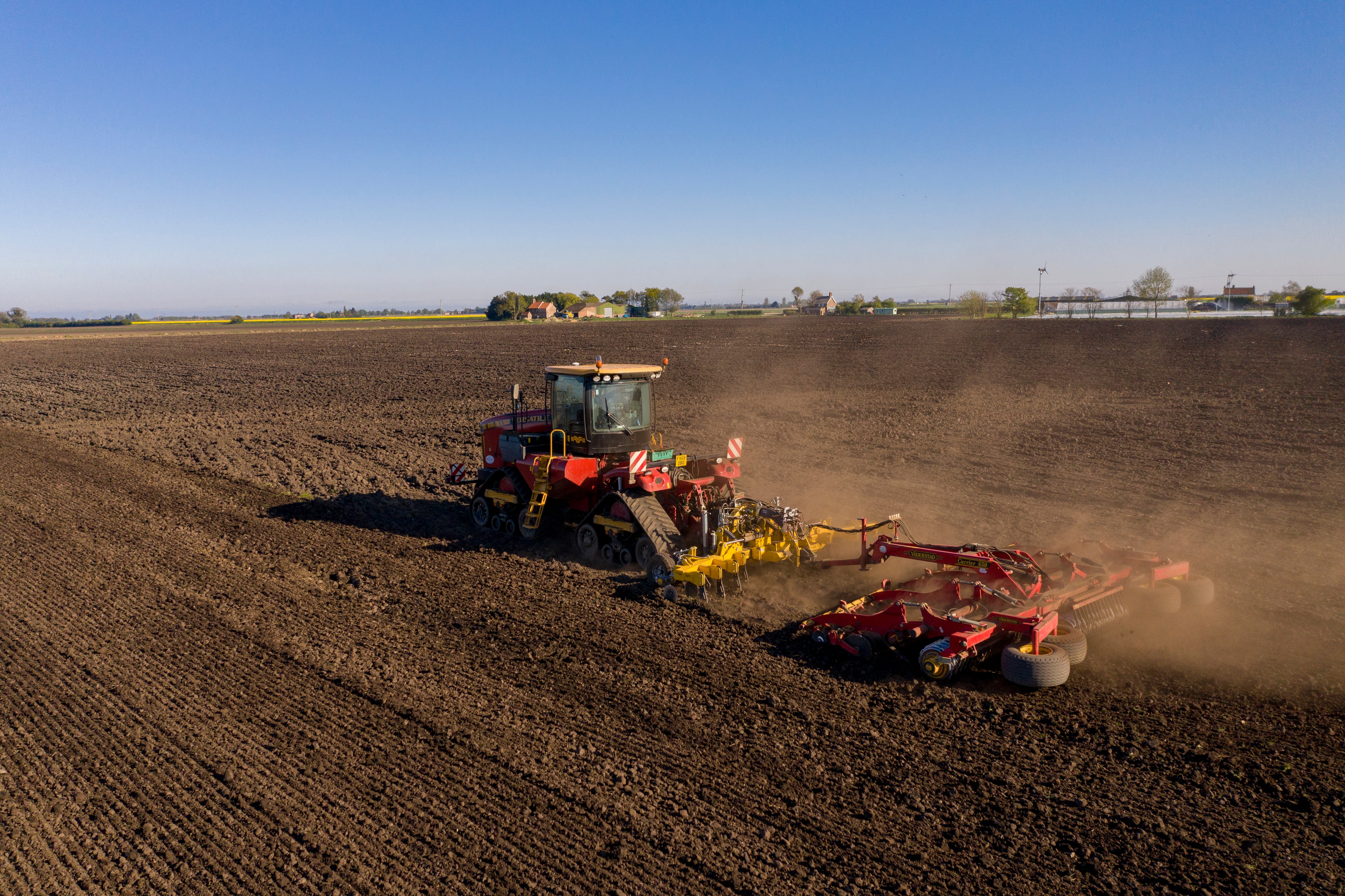

The 6m / 8m LDT works equally well as a standalone low-disturbance loosener or in combination with trailed drills, presses, and cultivators. The close-coupled design keeps the implement tight to the tractor for tight headland turns and consistent working depth across varying terrain.
One-Pass Capability
Whether loosening headlands before drilling or creating a low-disturbance seedbed in a single pass — the 6m / 8m LDT delivers adaptability and precision across diverse soil conditions.
Machine specifications
6m / 8m LDT — Full Spec
Ready to find out more?
Talk to the Grange team about the 6m / 8m LDT
Optional Upgrade
Maximise Your 6m / 8m LDT with a Packer Roller
The 6m / 8m LDT delivers outstanding low-disturbance cultivation — pair it with a packer roller to complete the seedbed in a single pass. Both options are fully removable, so you only use them when conditions demand it.
Tooth Packer
Roller
Aggressive consolidation and excellent clod-breaking action create a fine, crumbly soil structure, ideal for heavy soils and challenging seedbed conditions. The self-propelling action of the teeth helps reduce the power required to pull the machine, improving fuel efficiency.
Shoulder Press
Roller
Delivers firm, even consolidation across the full working width, breaking down clods and encouraging capillary action to improve moisture movement through the soil. Creates a consistent, level seedbed for precision drilling and reliable crop establishment.
All roller types are removable and interchangeable — attach or detach in minutes without specialist tools.
Not sure which roller suits your operation?
Our team can advise on the best option for your soil type and working conditions.
