The machine
Trailed precision. Sub-surface results.
The 6m Trailed LDL is built for high-output operations, combining heavy-duty components with advanced hydraulic systems to deliver precision sub-surface cultivation at scale.
Key features
6m Trailed LDL — What sets it apart

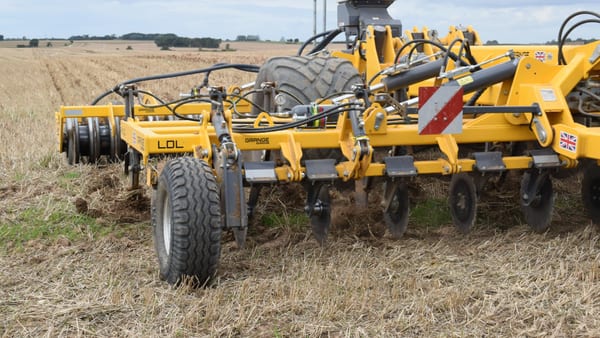

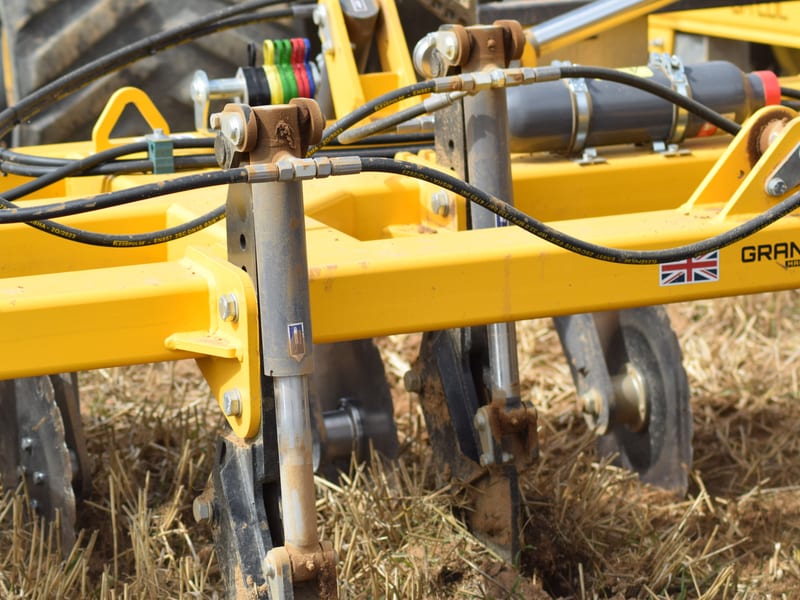

Low Disturbance Tine System
12 auto-reset low disturbance loosening legs spaced at 500mm, fitted with Grange Standard Width Tungsten Points and Hard Faced Lower Legs. Designed to lift and shatter soil compaction with minimal topsoil disturbance, guaranteeing extreme durability and consistent deep-working performance season after season.

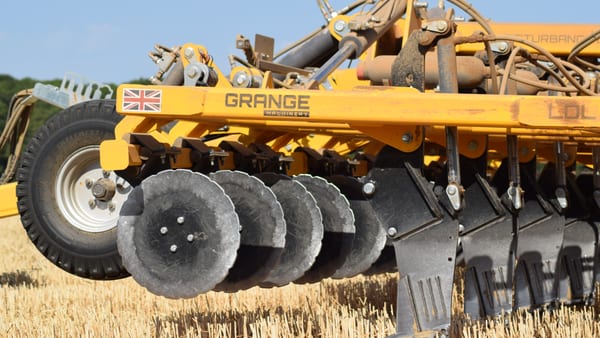

Integrated Residue & Seedbed Management
12 hydraulic front cutting discs (450mm) slice through trash and minimise surface disruption ahead of the tines. A choice of three robust rear packer rollers, hydraulically controlled for precise depth setting, leaves a perfectly consolidated finish ready for planting.

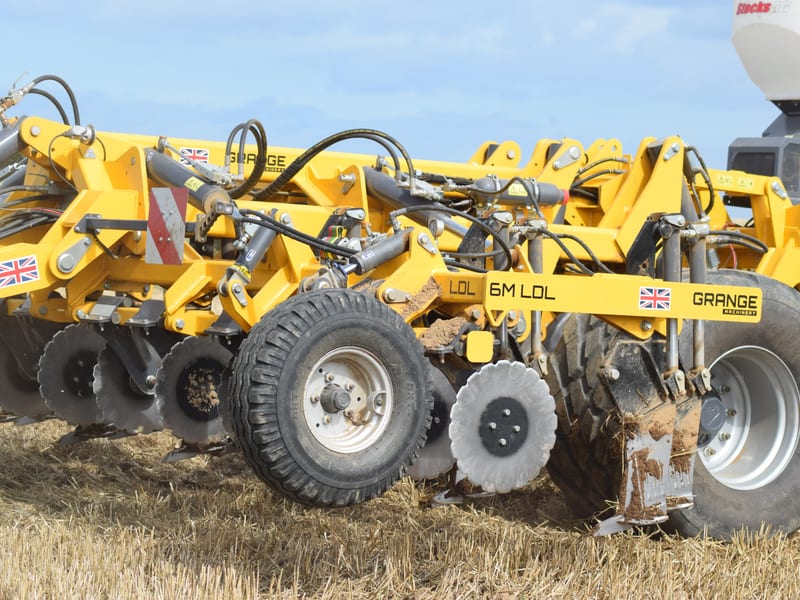

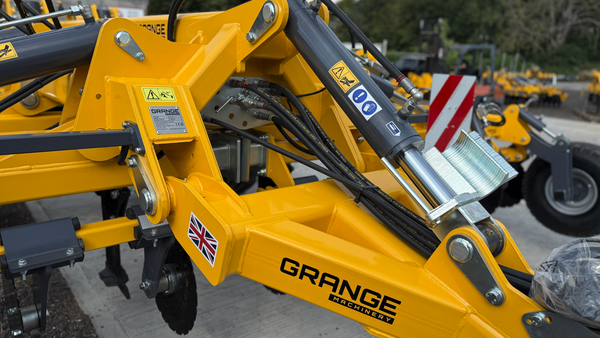

Advanced Hydraulic Depth & Transport Control
Hydraulic depth control via the front drawbar ram and rear lift axle, with fine-tuning via quick-release clips on both cylinders. The central hydraulic folding frame pivots to a sub-3m transport width and is secured by a hydraulic over-centre valve for safe, compliant road movement.

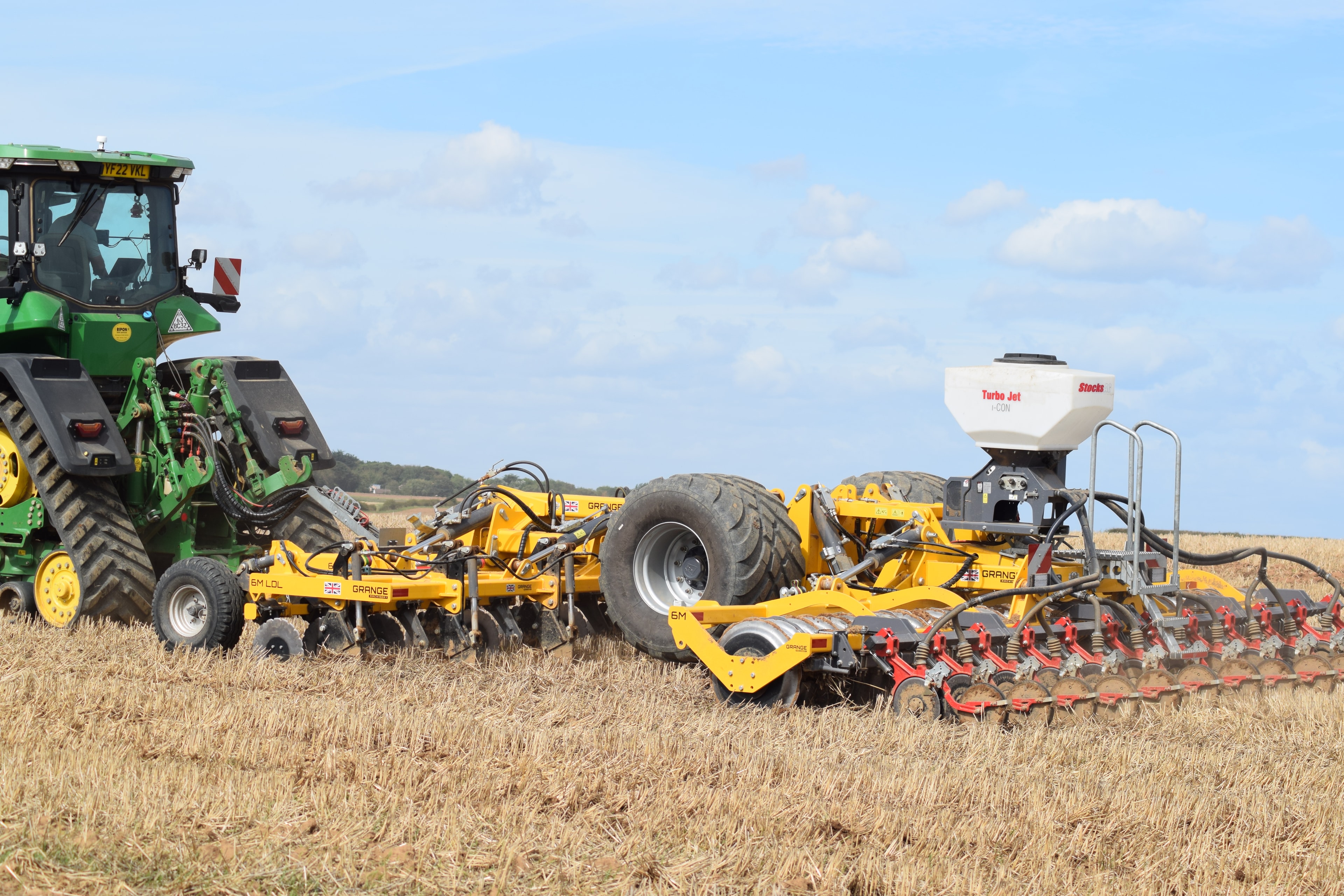

Seeder & Applicator Compatibility
Mounting brackets and seed outlet options allow the 6m Trailed LDL to carry a seeder or granular applicator, enabling simultaneous loosening and seeding in a single pass — reducing establishment costs and field passes.

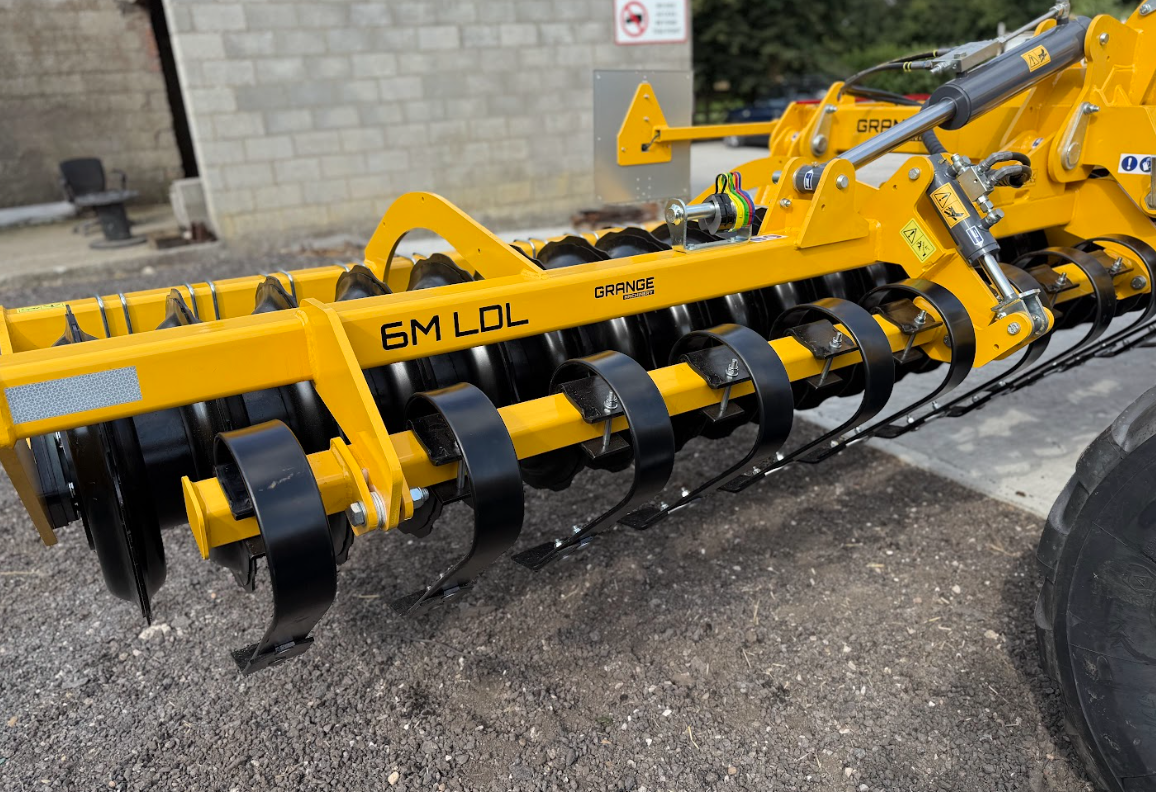

Hydraulic Levelling Paddles
Hydraulically adjustable paddle levelling board positioned in front of the packer roller for superior soil flow and levelling.

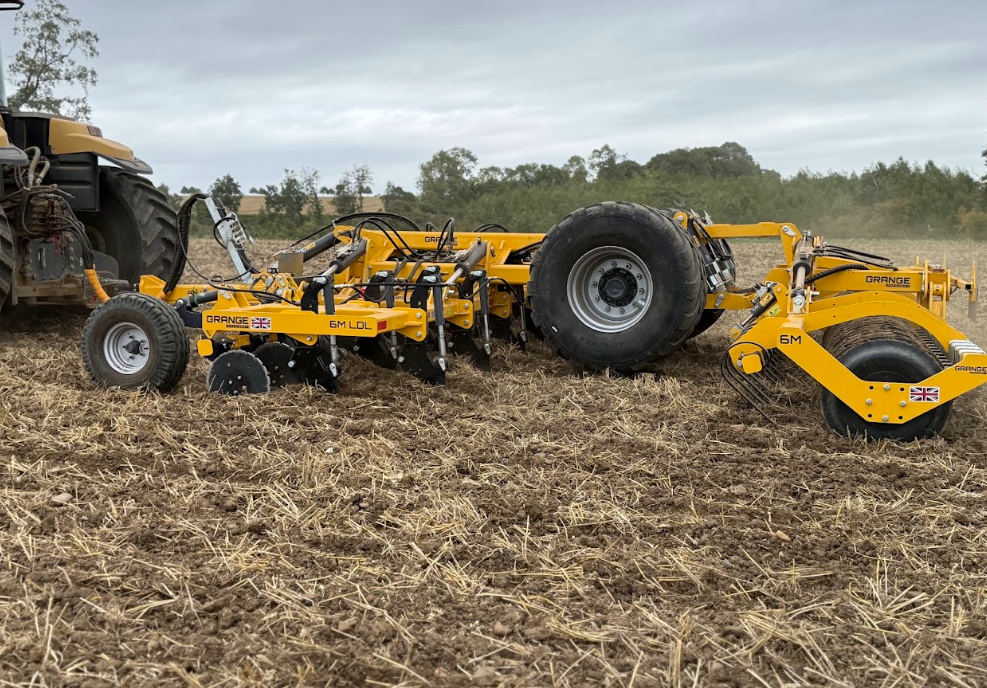

Tine Configuration
X12 Auto Reset legs spaced at 500mm, fitted with Grange Tungsten Points and Hard Faced Lower Legs.
Machine specifications
Trailed 6m LDL — Full Spec
Optional Upgrade
Seeder options.
Add a seeding capability to your 6m Trailed LDL and establish crops in a single pass. Choose the configuration that suits your seed type, soil conditions, and establishment method.

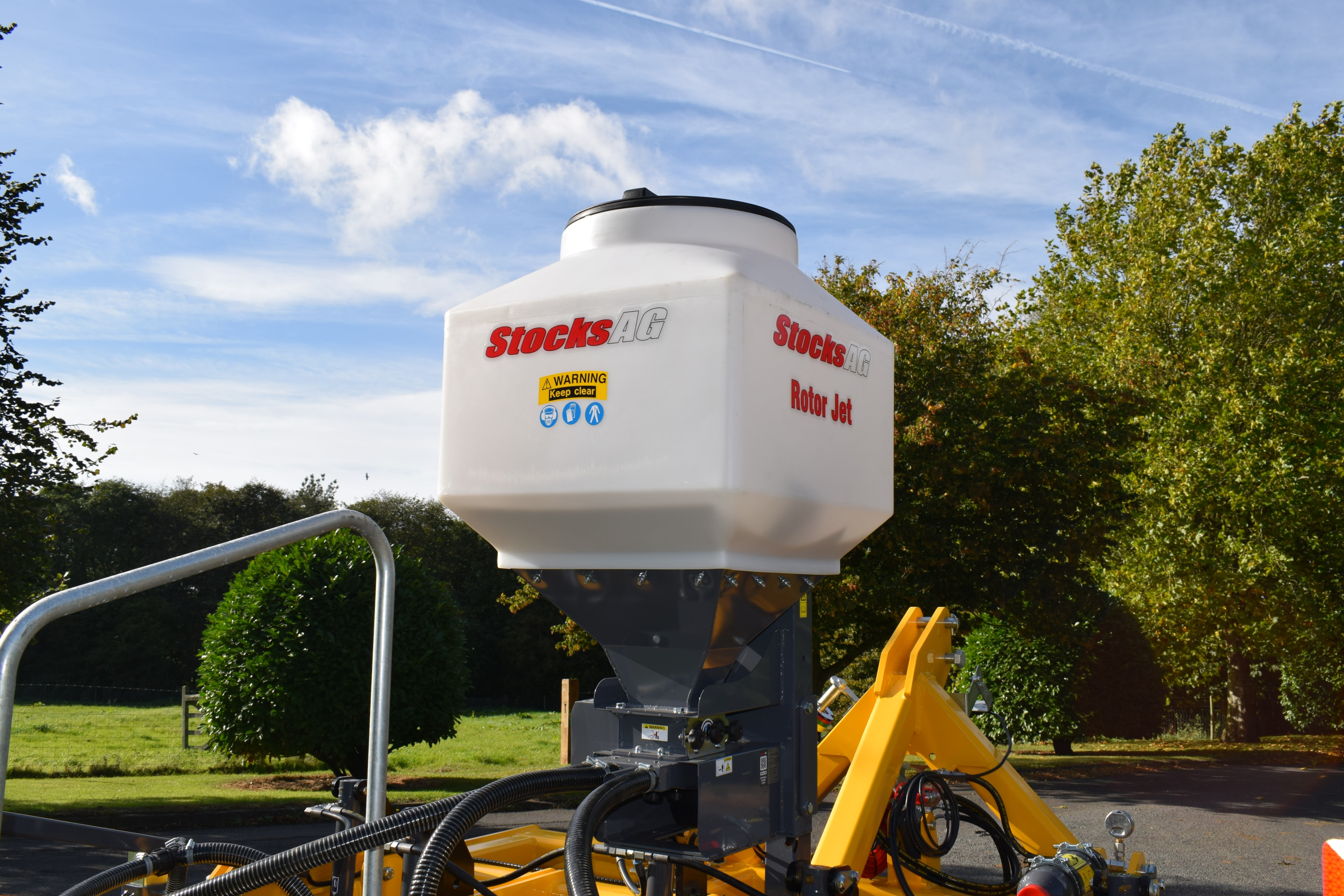

SeederKit
The complete seeder assembly including the access platform and mounting bracket. Designed to integrate directly onto the 6m Trailed LDL frame, delivering accurate seed placement directly behind the low disturbance tines.

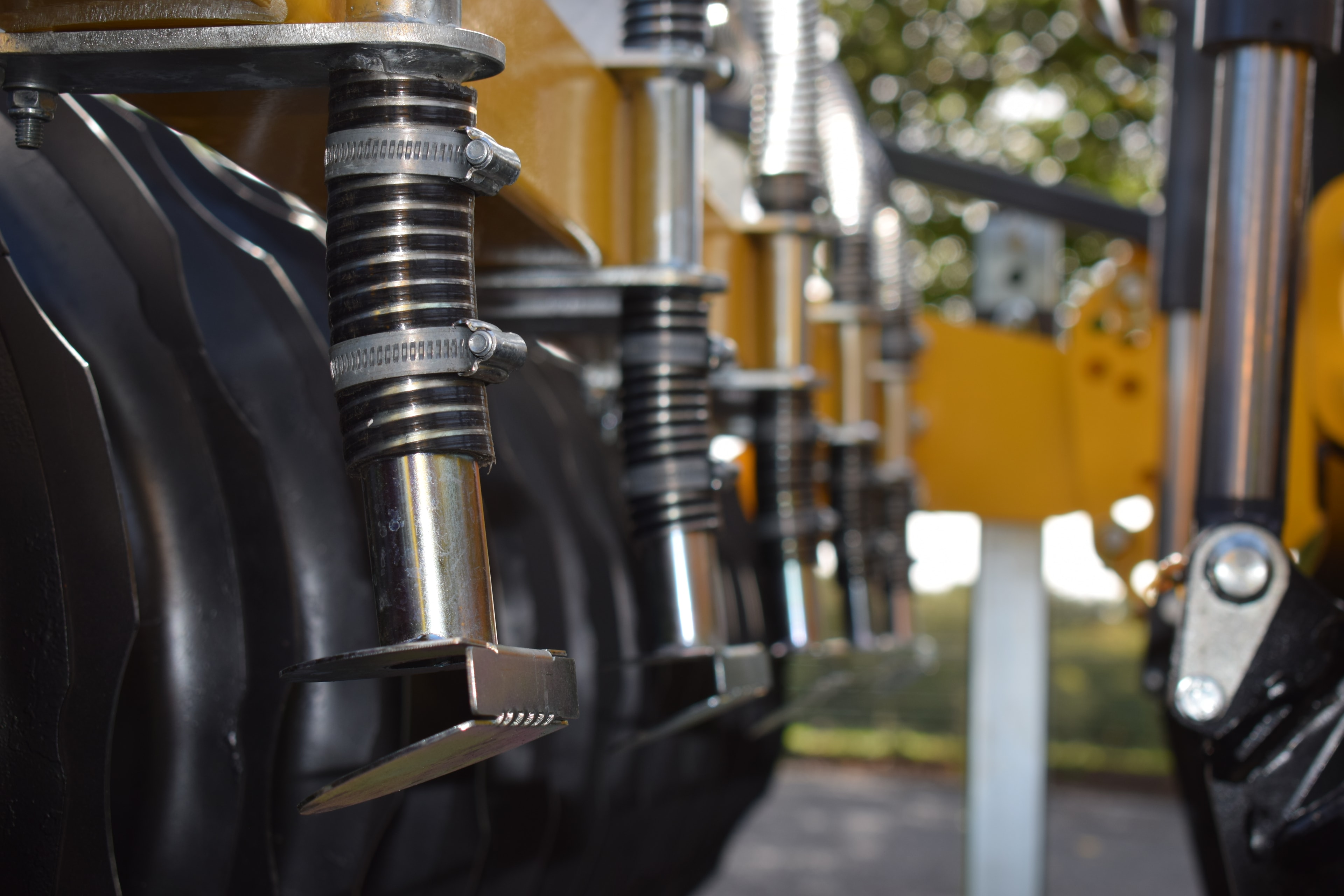

BroadcastingKit
Pipe and splash plate setup for broadcast application across the full working width. Ideal for cover crops, grass seeds, and other small-seeded species where precise placement is less critical.

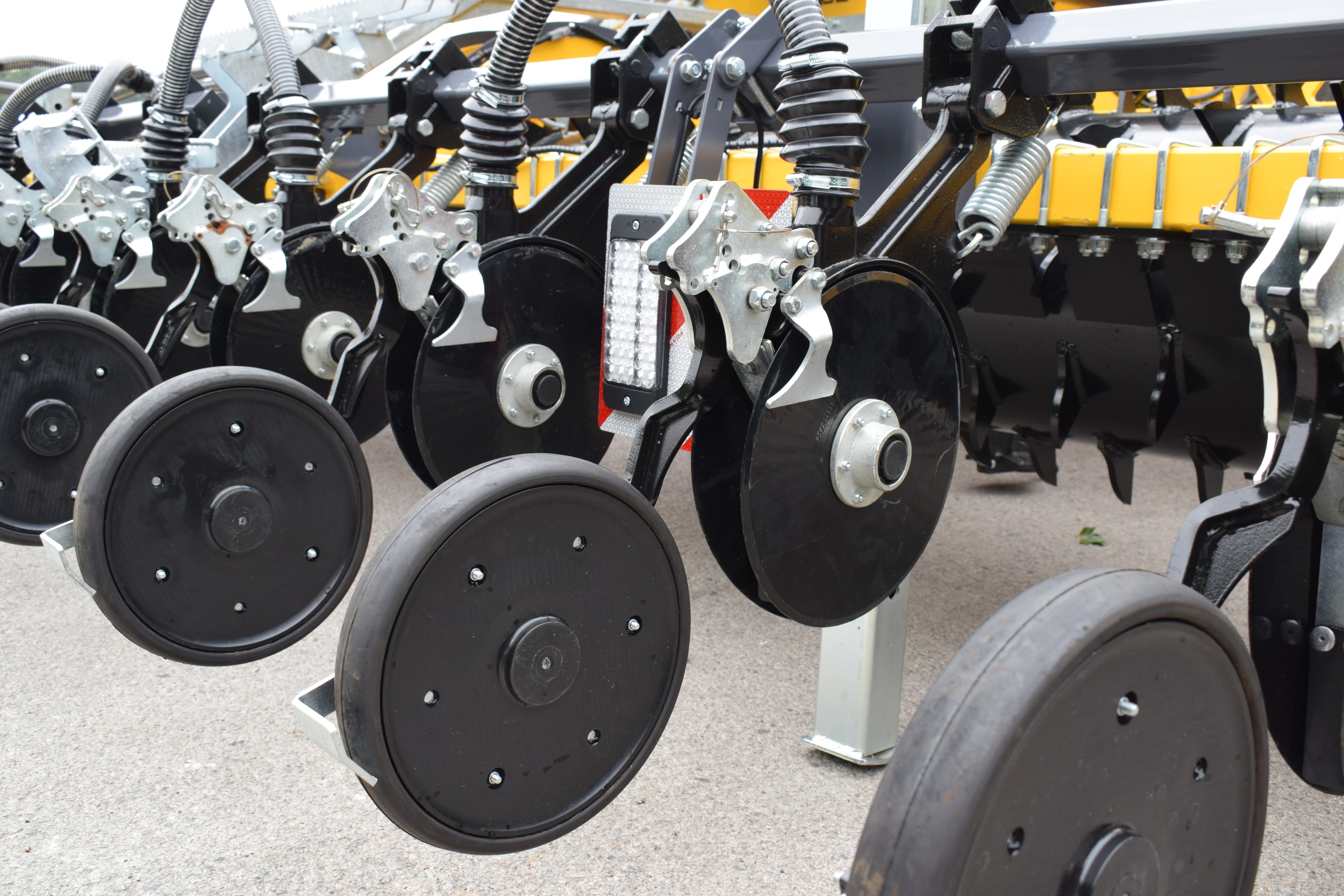

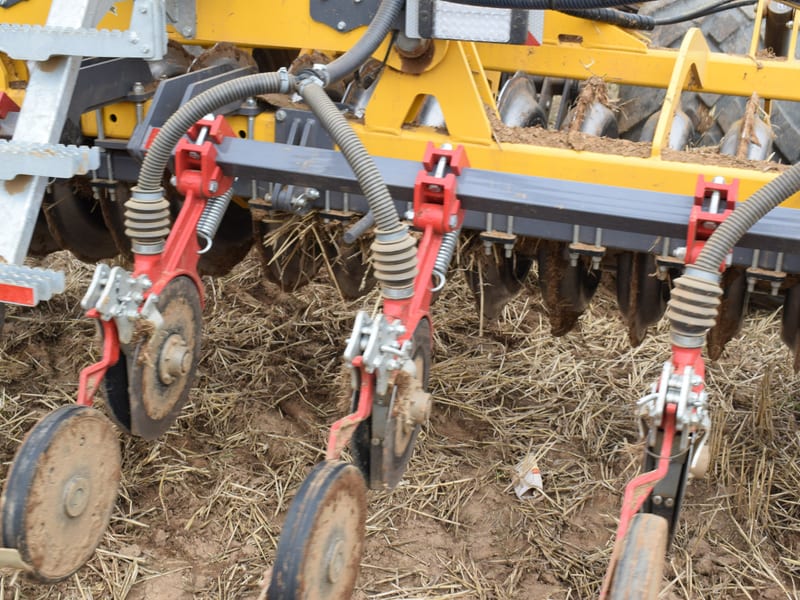

CoulterKit
Rear-mounted bar complete with all coulters for precise seed placement into the worked strip. Delivers consistent depth and spacing for demanding establishment requirements.
In the field
OSR establishment results — single-pass cultivation and seeding.
Not sure which seeder option suits your operation?
Our team can advise on the best configuration for your seed type and working conditions.
Available Configurations
Three roller types.
One system.
Every Grange packer roller is interchangeable on the same toolbar frame. Choose the profile that suits your soil type, crop, and conditions — or run all three across your rotation.
Tooth Packer
Roller
Aggressive consolidation and excellent clod-breaking action create a fine, crumbly soil structure, ideal for heavy soils and challenging seedbed conditions. The self-propelling action of the teeth helps reduce the power required to pull the machine, improving fuel efficiency.
Shoulder Press
Roller
Delivers firm, even consolidation across the full working width, breaking down clods and encouraging capillary action to improve moisture movement through the soil. Creates a consistent, level seedbed for precision drilling and reliable crop establishment.
Güttler
Roller
Star-shaped profile for superior soil-to-seed contact and moisture retention. The common choice for OSR and small-seed establishment.
All roller types are removable and interchangeable — attach or detach in minutes without specialist tools.
