Loosener
LowDisturbanceLoosener5m&6m
From RRP £43,250 + VAT
Two widths. One standard.
Loosener
LowDisturbanceLoosener5m&6m
From RRP £43,250 + VAT
Two widths. One standard.

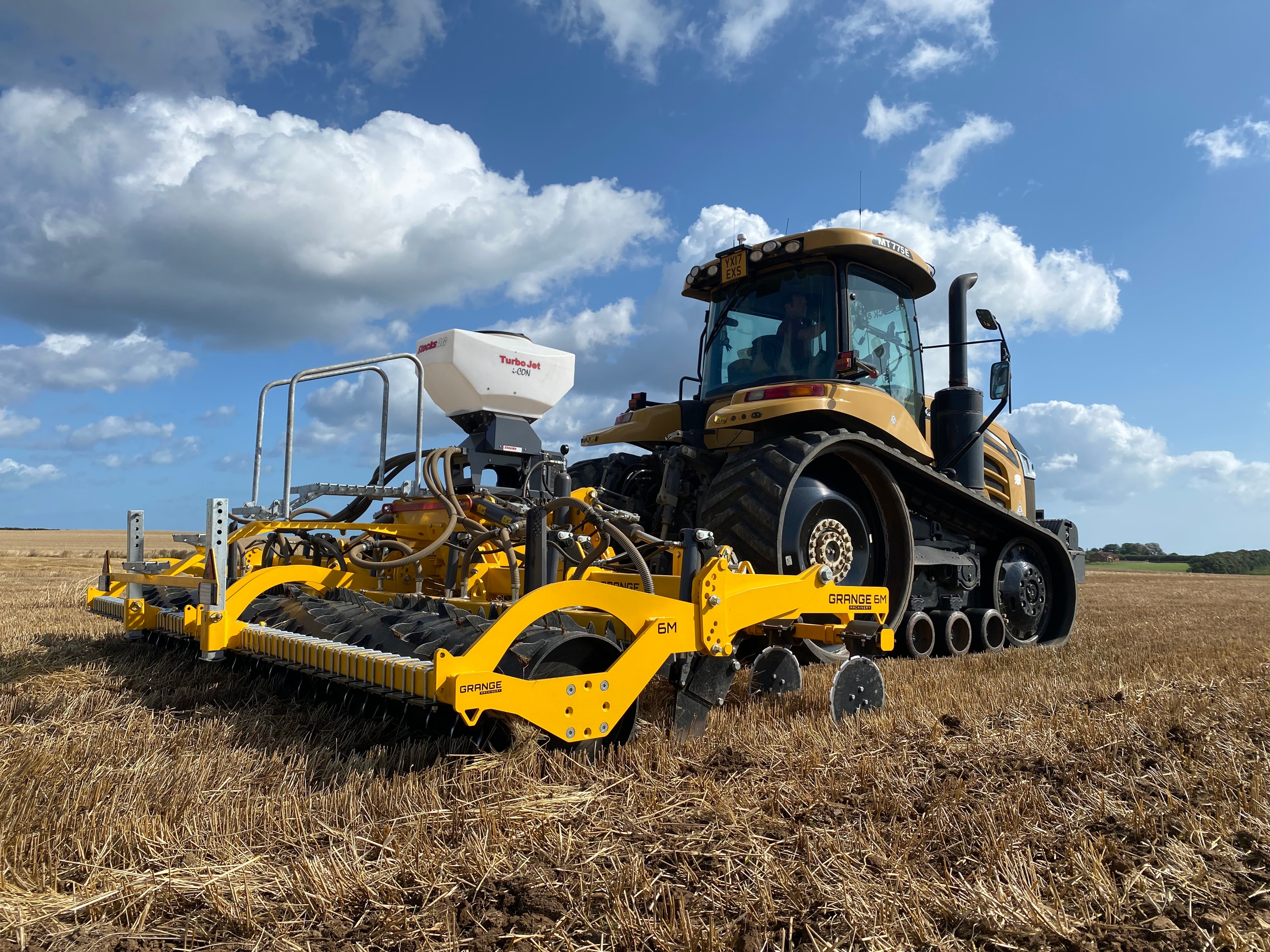

In the field

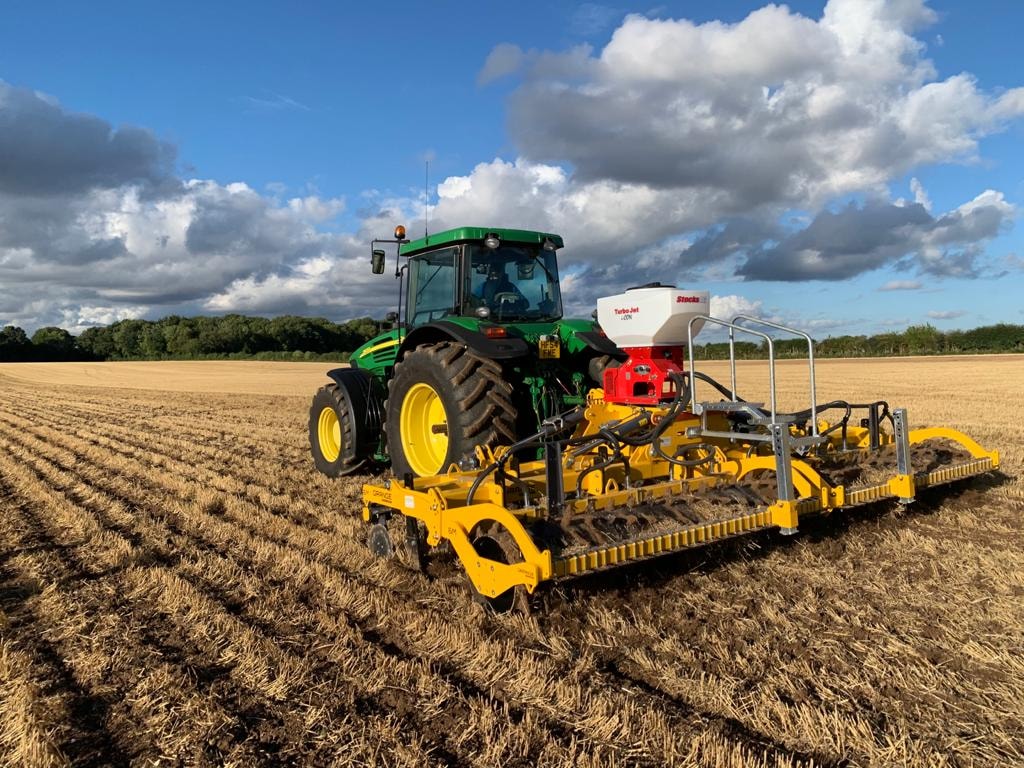

See the 5m & 6m LDL in Action
The machine

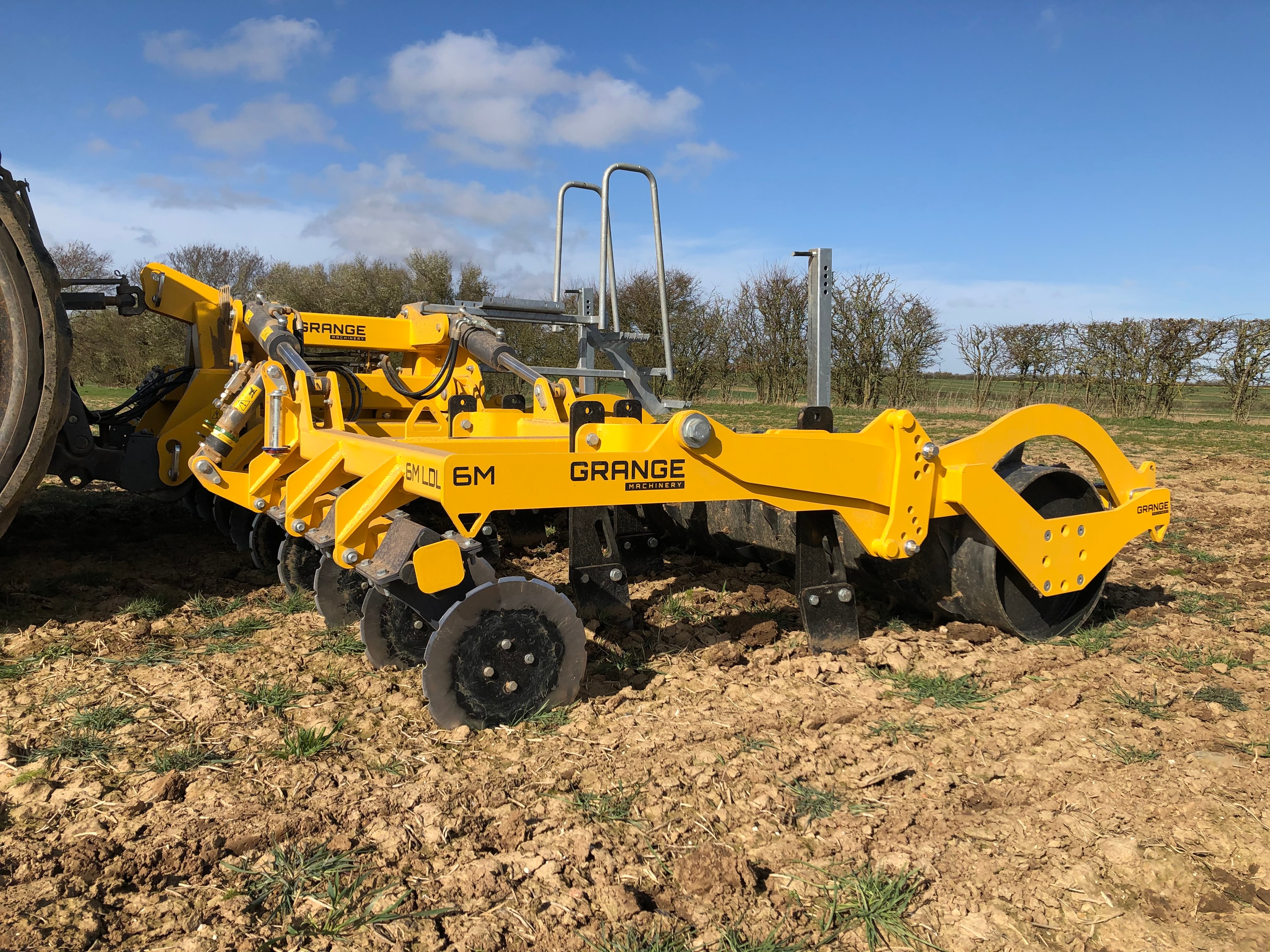

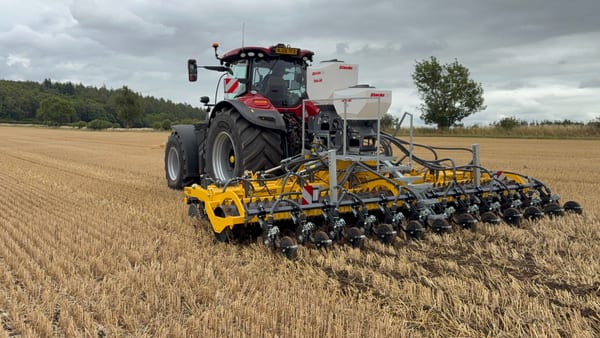

5m & 6m LDL — Wide-working precision
The Grange 5m & 6m LDL has been developed in direct response to farmers seeking a practical solution to sub-surface compaction without the disruption of deep cultivation. With the capacity to work to a depth of 300mm and the versatility to prepare fields for delayed or immediate drilling, this machine offers exceptional flexibility across seasonal conditions.
Get a quote
Key features
5m & 6m LDL — What sets it apart

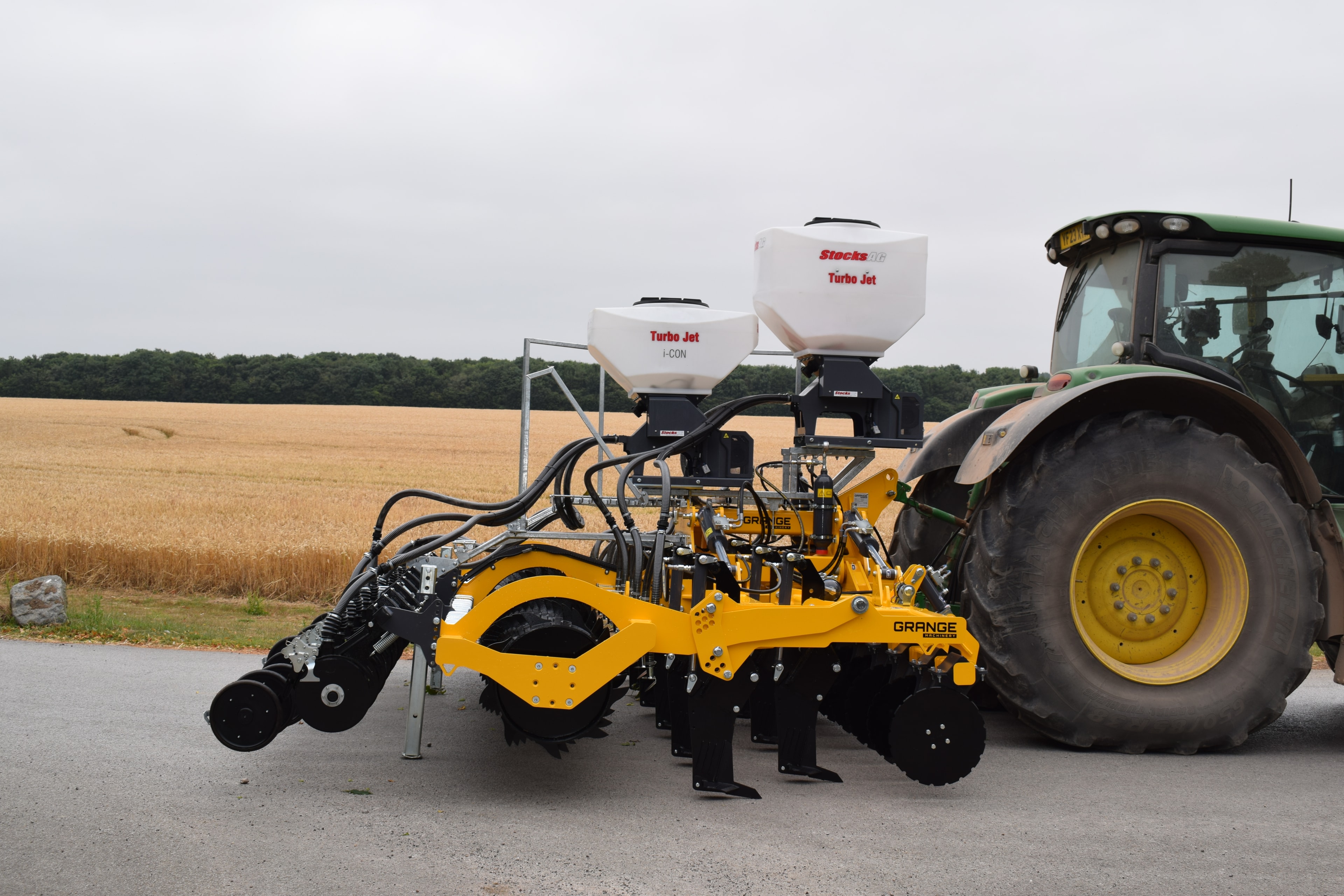

Low Disturbance Leg System
Low disturbance loosening legs spaced at 500mm centres provide full-width coverage, working to a maximum depth of 300mm (12"). Available with either shear bolt or hydraulic auto-reset leg protection to suit your operating conditions.
Hydraulic Front Cutting Discs
Hydraulically controlled front cutting discs slice through surface trash ahead of the tines, helping to reduce surface heave and maintain surface integrity during loosening.

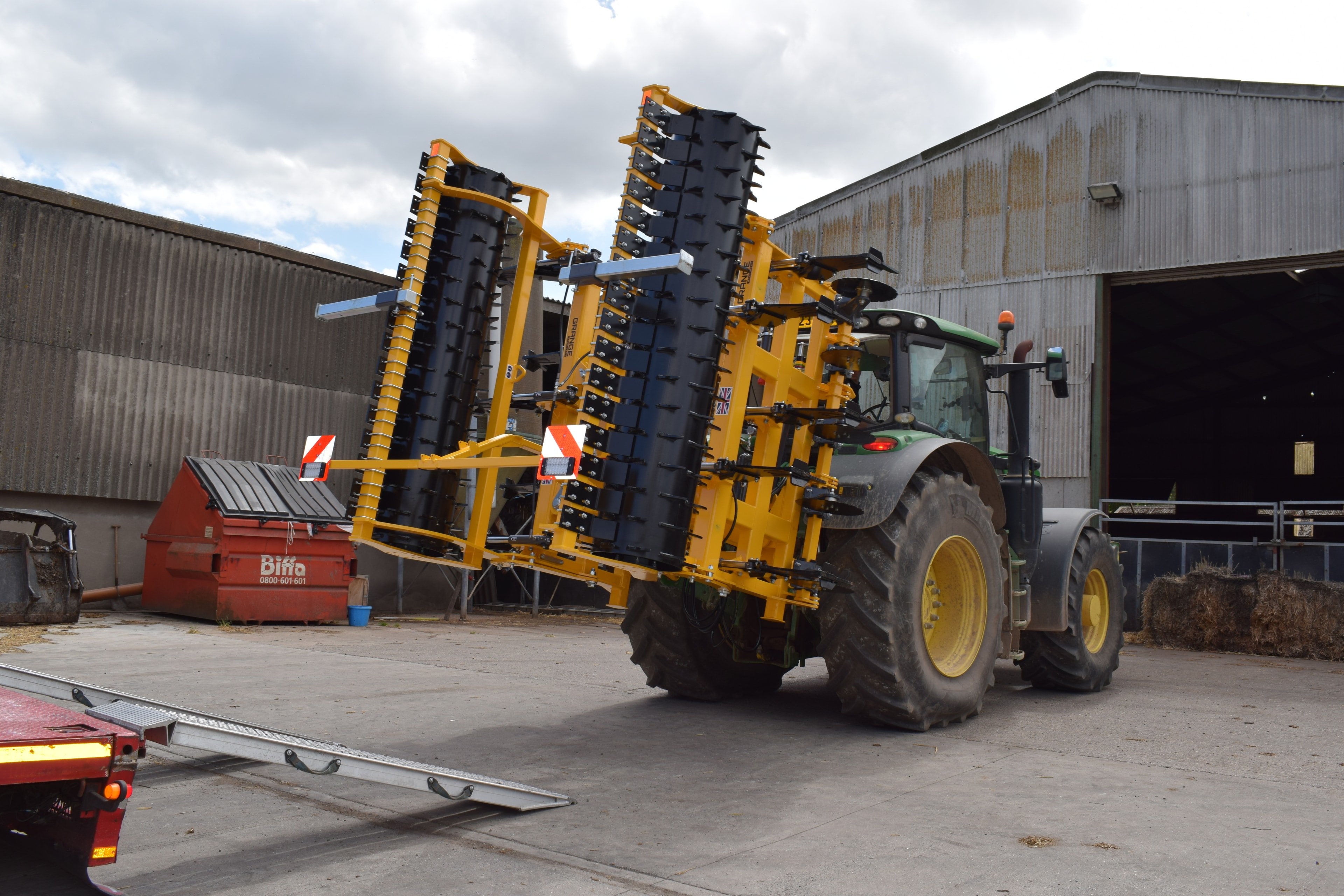

Central Hydraulic Folding Frame
The central hydraulic folding system reduces transport width to under 3m, making the 5m and 6m LDL models straightforward to move between fields on public roads.

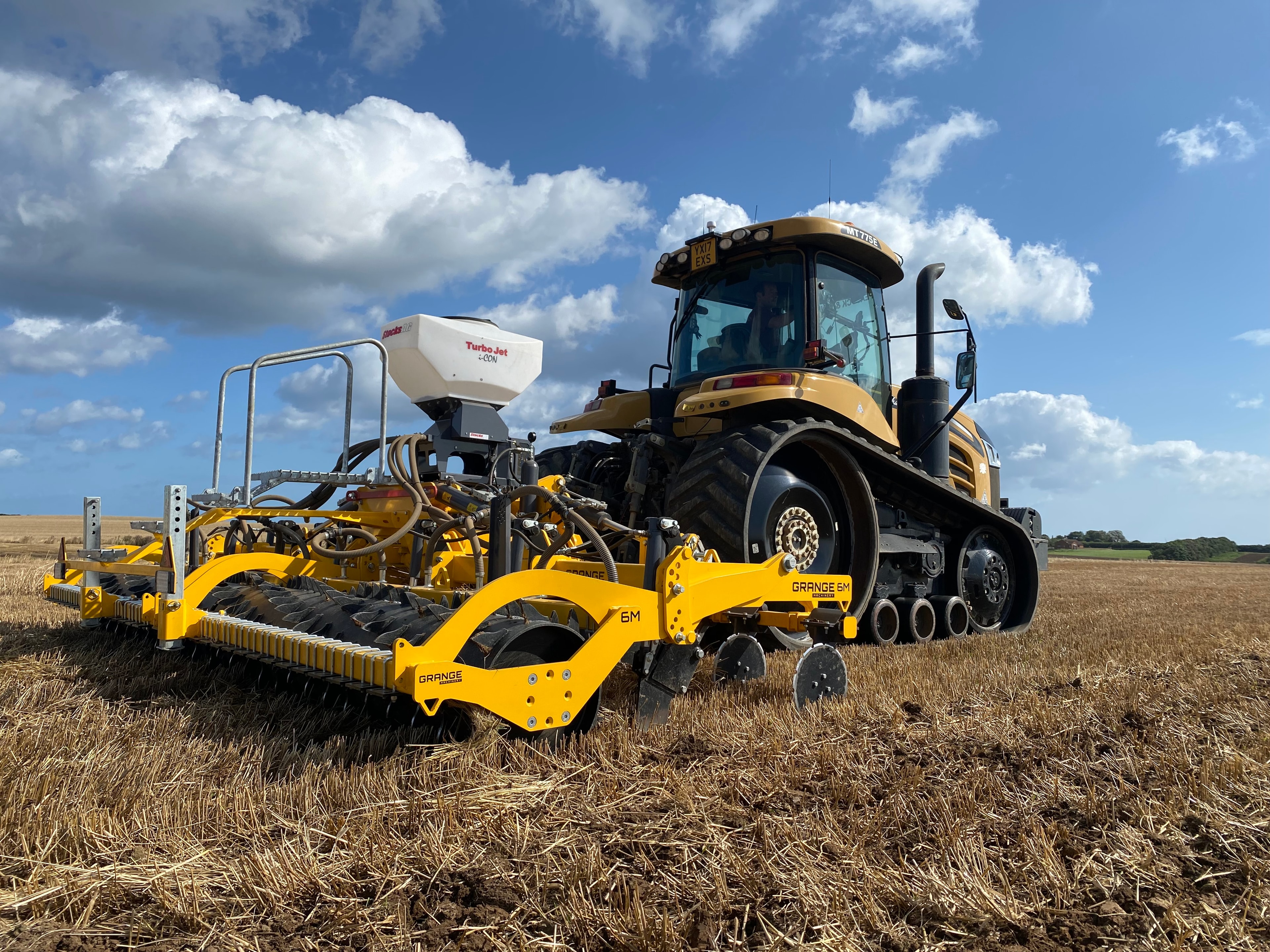

Rear Packer Compatibility
Compatible with a range of rear packer options to consolidate the soil after loosening, helping create a level, weather-resistant finish ready for subsequent drilling.
Effective Compaction Relief
Designed to break post-harvest compaction pans and improve soil structure and drainage, helping create better conditions for crop rooting and establishment.

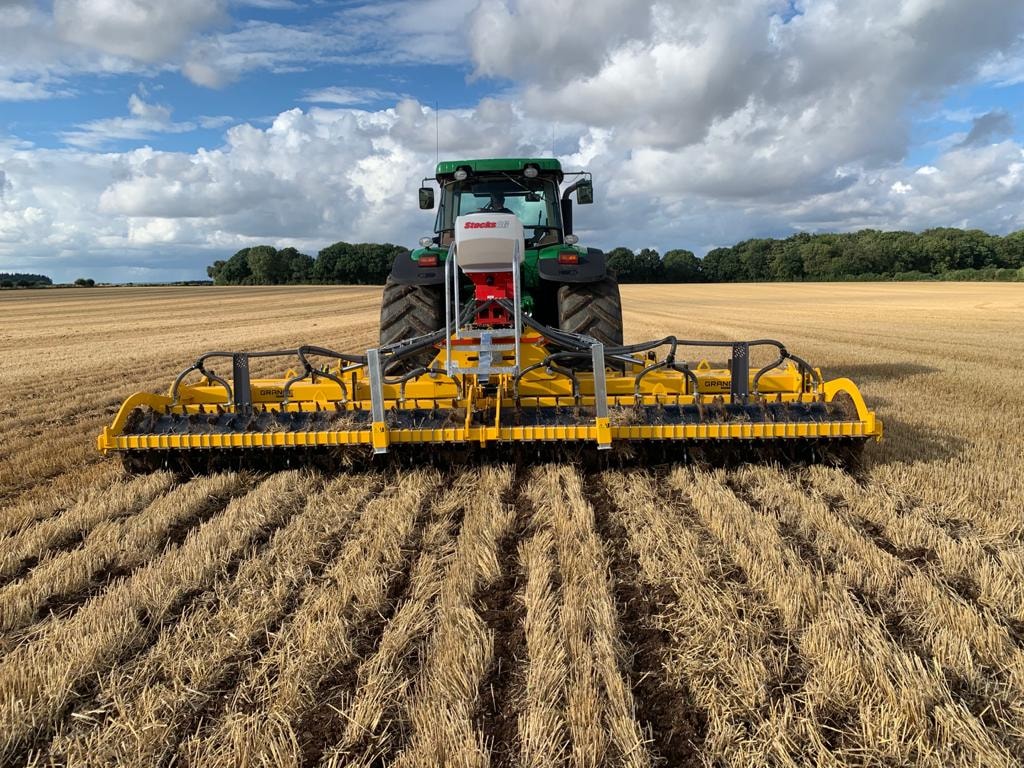

Versatile Establishment Preparation
Suitable for preparing ground ahead of autumn or spring drilling, particularly in Direct Drill and Min-Till systems, while preserving surface conditions for efficient establishment.
Machine specifications
5m & 6m LDL — Full Spec
Optional Upgrade
Seeder options.
Add a seeding capability to your 5m & 6m LDL and establish crops in a single pass. Choose the configuration that suits your seed type, soil conditions, and establishment method.

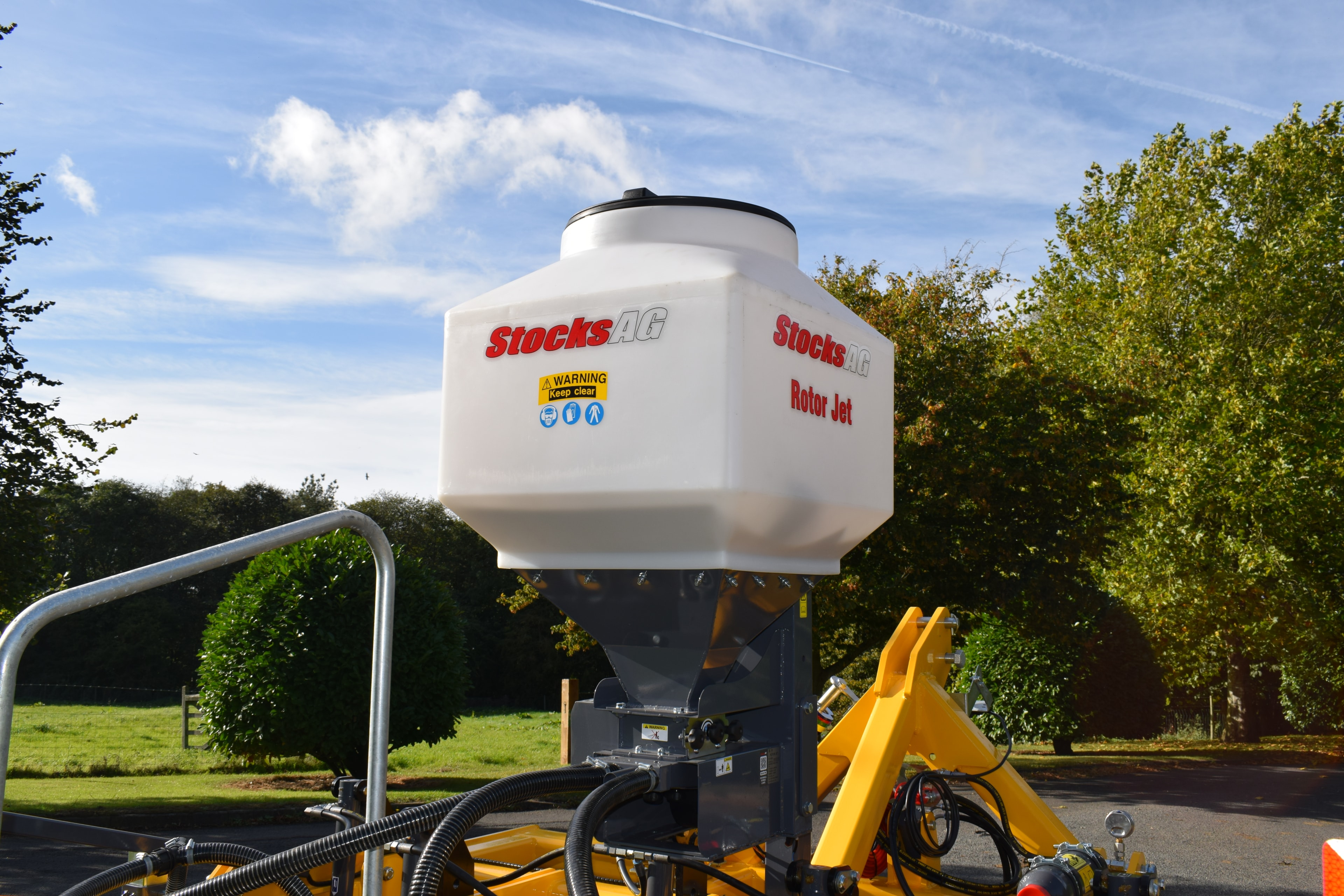

SeederKit
The complete seeder assembly including the access platform and mounting bracket. Integrates directly onto the 5m & 6m LDL frame, delivering accurate seed placement directly behind the low disturbance tines.

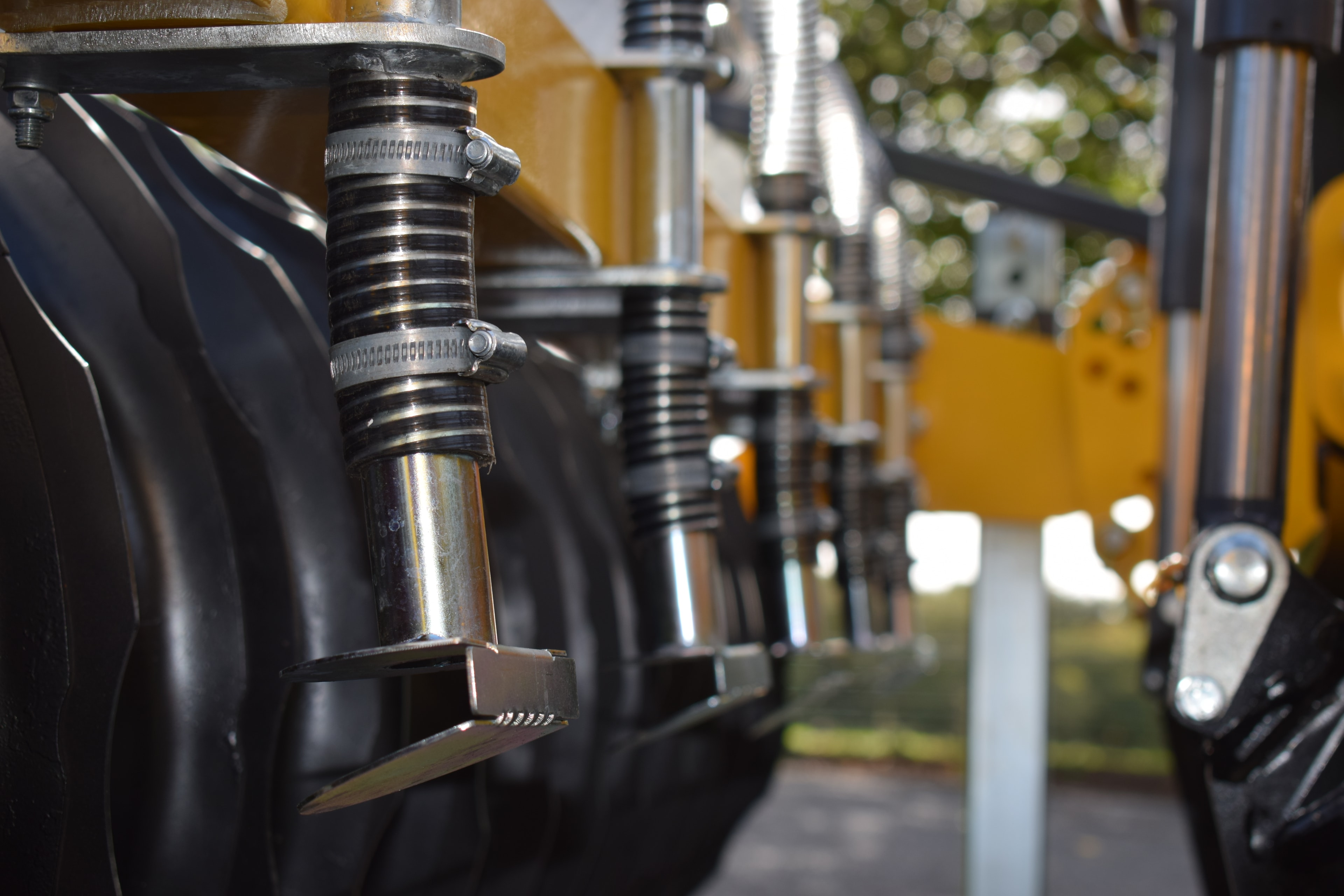

BroadcastingKit
Pipe and splash plate setup for broadcast application across the full working width. Ideal for cover crops, grass seeds, and other small-seeded species where precise placement is less critical.

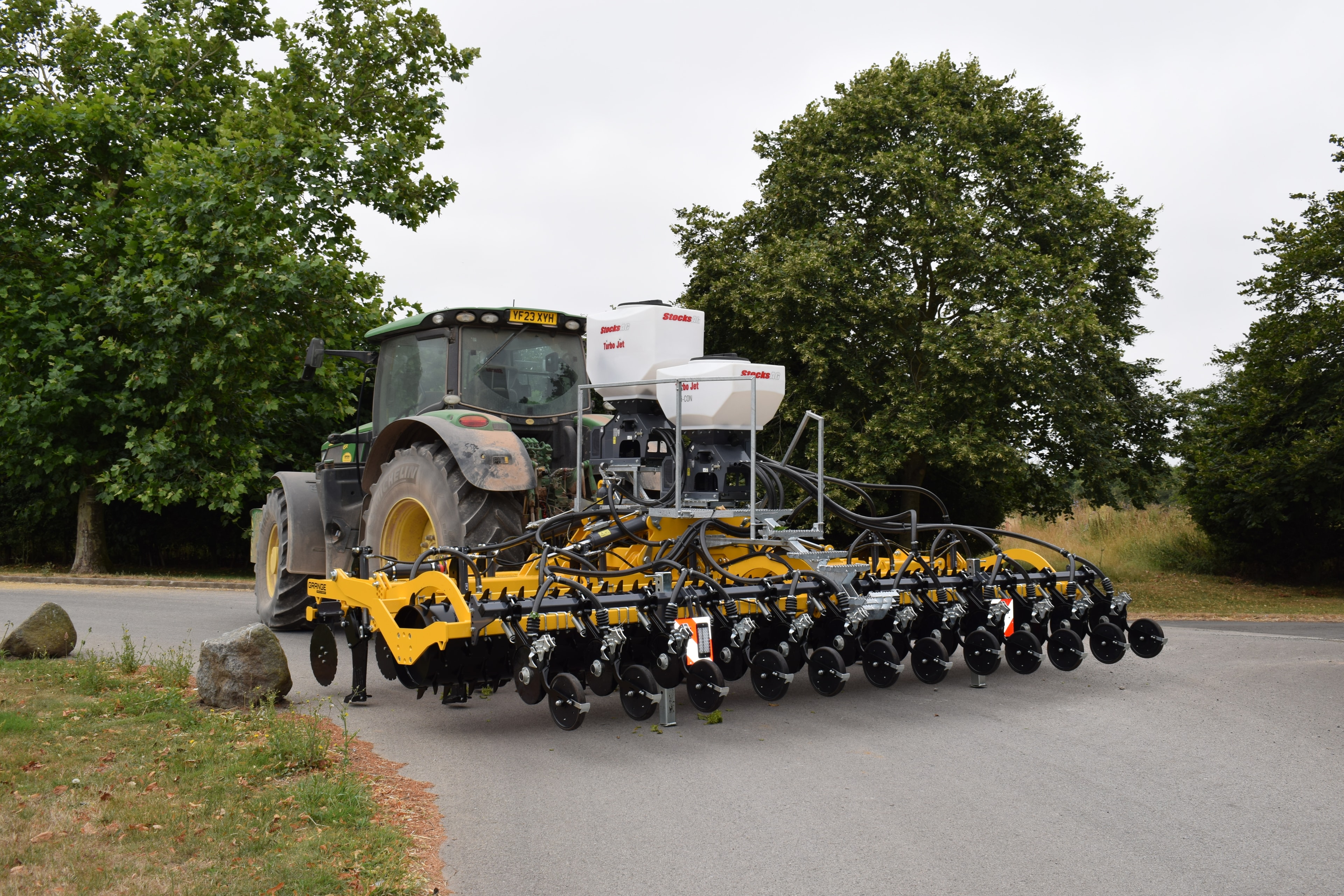

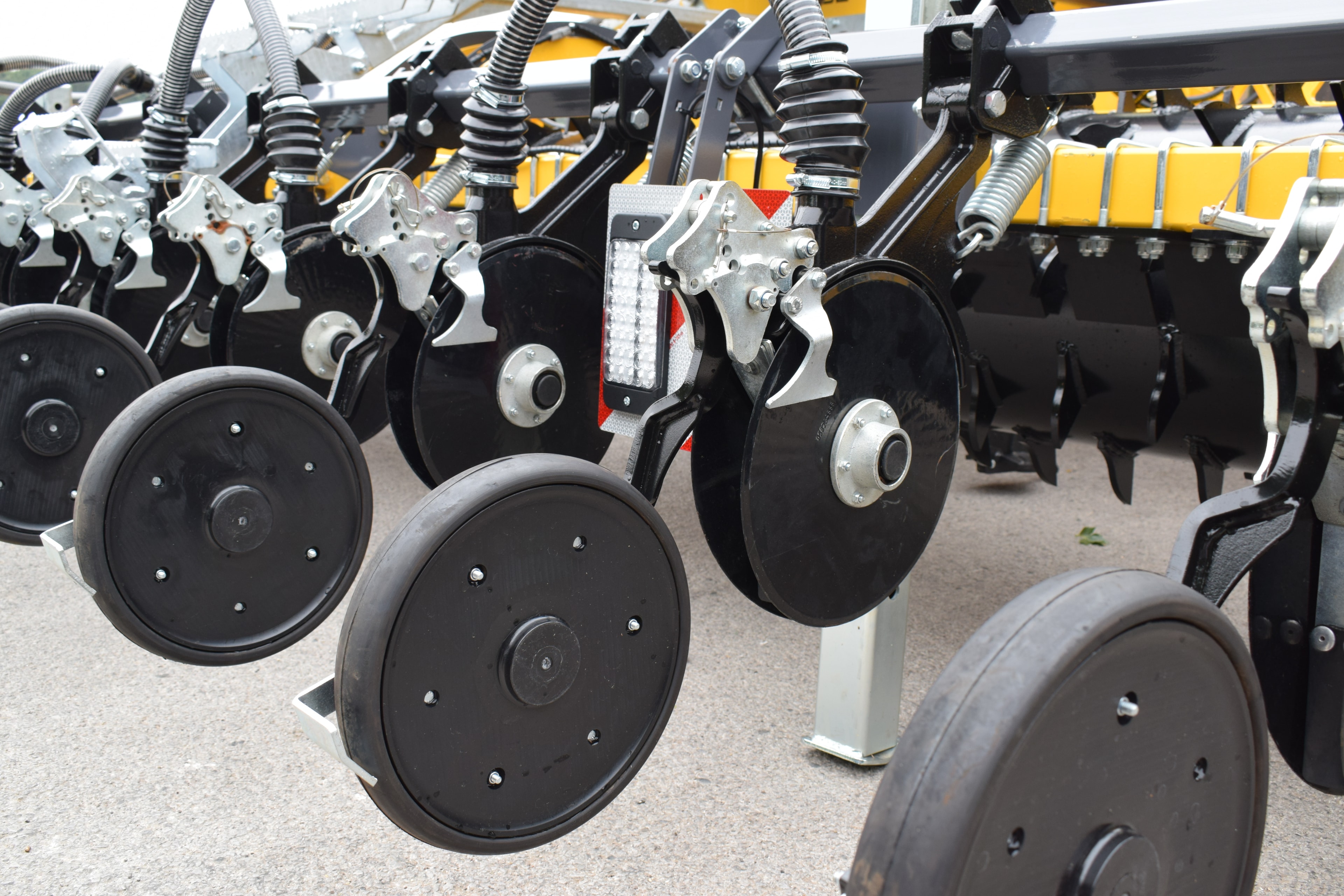

CoulterKit
Rear-mounted bar complete with all coulters for precise seed placement into the worked strip. Delivers consistent depth and spacing for demanding establishment requirements.
In the field
OSR establishment results — single-pass cultivation and seeding.
Not sure which seeder option suits your operation?
Our team can advise on the best configuration for your seed type and working conditions.
Available Configurations
Three roller types.
One system.
Every Grange packer roller is interchangeable on the same toolbar frame. Choose the profile that suits your soil type, crop, and conditions — or run all three across your rotation.
Tooth Packer
Roller
Aggressive consolidation and excellent clod-breaking action create a fine, crumbly soil structure, ideal for heavy soils and challenging seedbed conditions. The self-propelling action of the teeth helps reduce the power required to pull the machine, improving fuel efficiency.
Shoulder Press
Roller
Delivers firm, even consolidation across the full working width, breaking down clods and encouraging capillary action to improve moisture movement through the soil. Creates a consistent, level seedbed for precision drilling and reliable crop establishment.
Güttler
Roller
Star-shaped profile for superior soil-to-seed contact and moisture retention. The common choice for OSR and small-seed establishment.
All roller types are removable and interchangeable — attach or detach in minutes without specialist tools.
