Close Coupled Toolbar
CloseCoupledToolbar3m&4m
The same proven CCT performance in a compact, versatile format
Close Coupled Toolbar
CloseCoupledToolbar3m&4m
The same proven CCT performance in a compact, versatile format
See It In Action
3m & 4m CCT Up Close
The machine
Compact width. Full CCT performance.
The 3m and 4m Close Coupled Toolbars bring the same proven CCT technology to smaller operations and tighter field conditions. Ideal for farms where a full 6m width isn't required, these compact models retain all the versatility and low-disturbance performance of the larger CCT.
Get a quote
Key features
What sets the 3m & 4m apart
Dual Compatibility with Rear Implements
Available in 3m and 4m working widths, these models deliver the same low disturbance loosening, track eradication, and implement compatibility as the 6m CCT — in a more manoeuvrable package suited to smaller fields and tighter headlands.

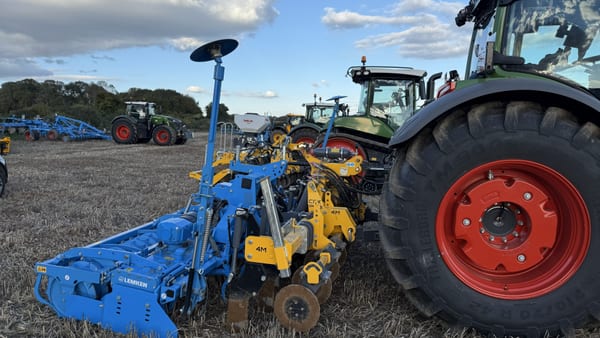

Mounted & PTO-Driven Implement Compatibility
Hydraulic rear linkage with detachable 'A' frame supports 3-point link and PTO-powered implements. Works with power harrows, drills, ridgers, and cultivators at matching working widths.
Low Disturbance Tine System
Grange Low Disturbance legs with variable spacing tackle compaction in tramlines and wheelings to 300mm depth.

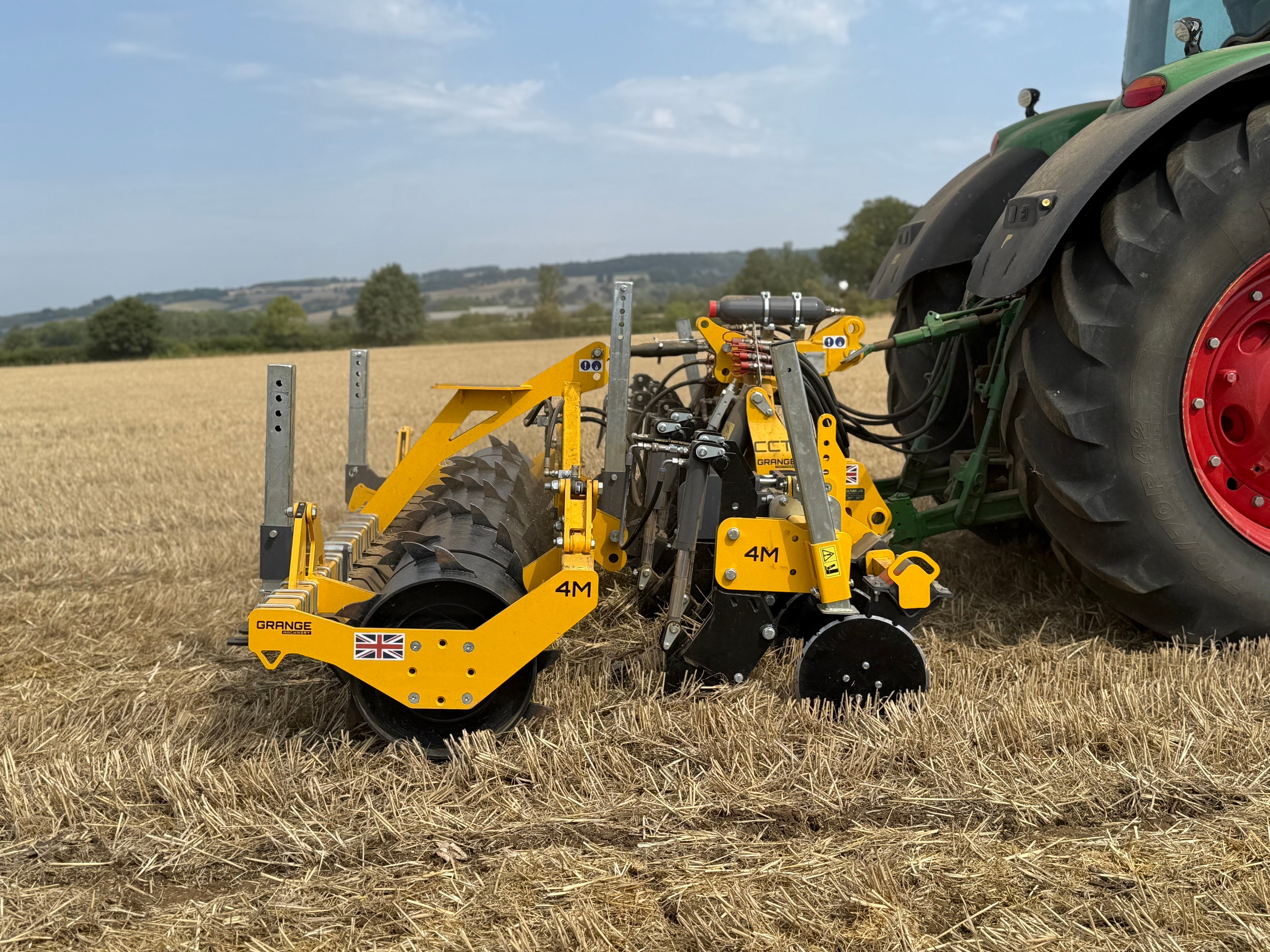

Packer Roller Options
Available with Shoulder Press, Tooth Packer, or Güttler roller options — all removable via the quick-detach system. Hydraulically adjustable working depth allows precise consolidation to match soil conditions and crop requirements.

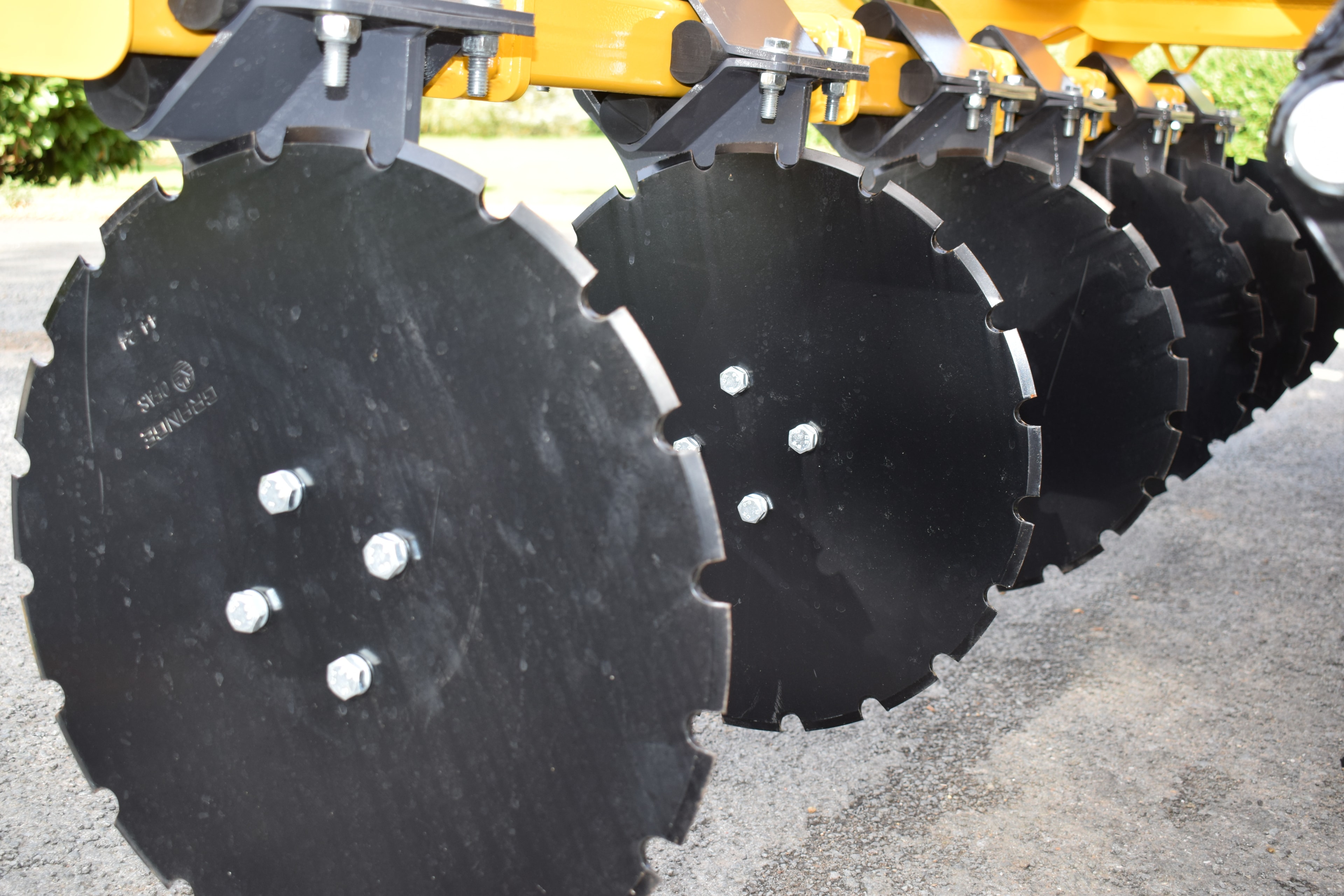

Hydraulic Front Discs - Residue Management
Front hydraulic cutting discs slice through surface trash and crop residue ahead of the tines, keeping the machine running cleanly in heavy residue conditions and reducing the risk of blockages.

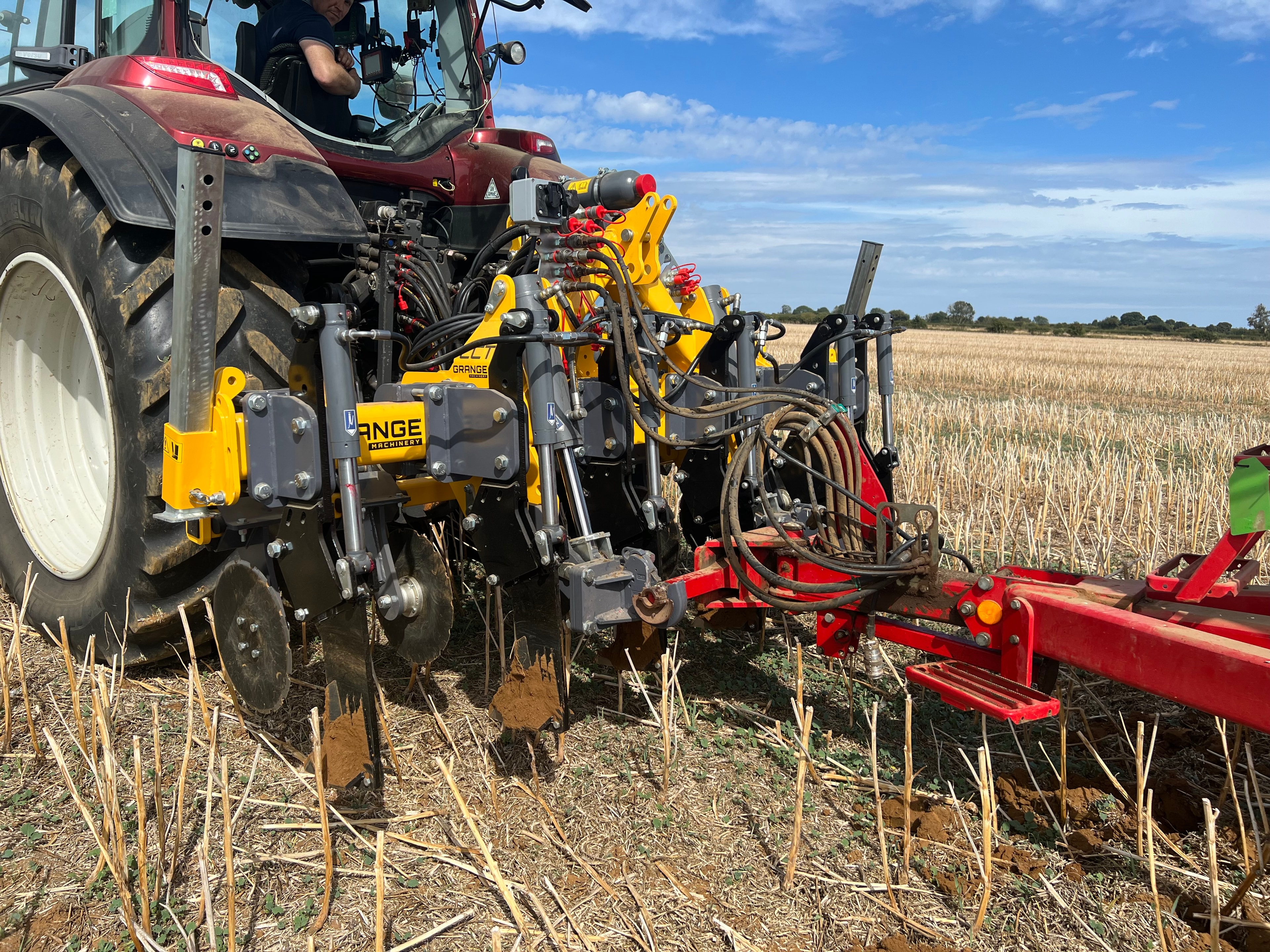

Hydraulic Rear Linkage
Comes with an ‘A’ frame as standard that enables the operator to trail machines and preserve the towing height. This allows the machine tines to be fully out of work whilst still towing the rear implement at its desired towing height.
Machine specifications
3m & 4m CCT — Full Spec
Optional Upgrade
Add a Packer Roller to Your 3m & 4m CCT
The 3m & 4m CCT is a highly capable machine on its own — but adding a packer roller takes it further. Choose from two options designed to maximise seedbed quality and crop establishment, and remove it whenever conditions don't require it.
Tooth Packer
Roller
Aggressive consolidation and excellent clod-breaking action create a fine, crumbly soil structure, ideal for heavy soils and challenging seedbed conditions. The self-propelling action of the teeth helps reduce the power required to pull the machine, improving fuel efficiency.
Shoulder Press
Roller
Delivers firm, even consolidation across the full working width, breaking down clods and encouraging capillary action to improve moisture movement through the soil. Creates a consistent, level seedbed for precision drilling and reliable crop establishment.
All roller types are removable and interchangeable — attach or detach in minutes without specialist tools.
Not sure which roller suits your operation?
Our team can advise on the best option for your soil type and working conditions.
